SKU: GB8XR-A 30KW

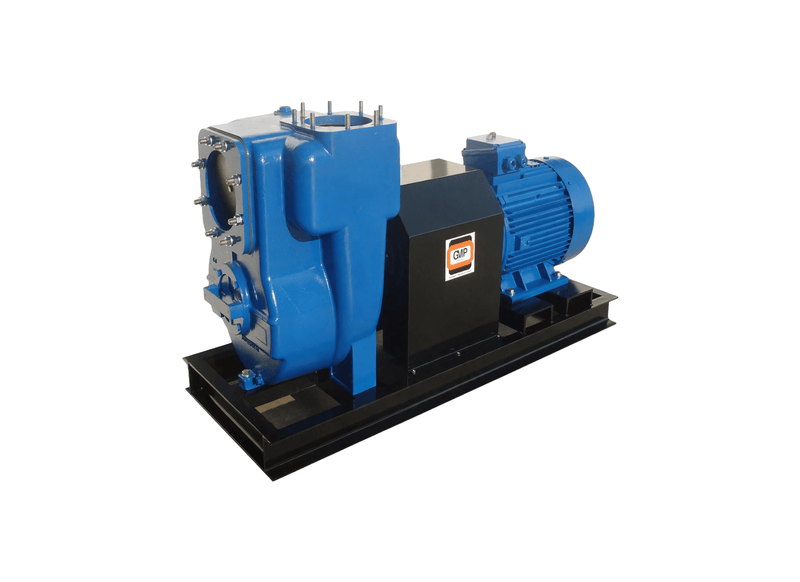

Aussie Pumps GMP GB8XR-A 30KW Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Emergency sewer bypass networks, bulk stormwater drainage, and mine tailings lines utilize the colossal Aussie GMP B8XR-A motor-driven unit . A large-volume structural steel channel foundation provides total mechanical structurality during demanding fluid transfer cycles.
Bulk dewatering volume reaches 7,500 L/min at open discharge, with total shut-off head developing to 16 m (23 PSI) at zero flow. The heavy cast iron volute houses an open non-clog trash impeller configured to pass giant 70 mm spherical solids without binding.
Drive power is delivered by a 30 kW four-pole three-phase 415 V TEFC motor running at 1,450 RPM with IP55 protection (supplied unwired without lead or plug). The self-priming casing picks up suction lift from vertical depths of 6 m without requiring foot valves.
Severe-duty silicon carbide mechanical shaft seals protect internal mechanisms against grit slurry up to 70°C intermittently. An oversized front clean-out hatch allows swift volute servicing without uncoupling 8-inch pipe joints. Backed by Aussie Pumps 3-year warranty.
Features- Colossal 8-inch porting delivers fluid throughput up to 7,500 L/min open discharge.
- Large-volume 70 mm spherical solids passage handles large debris, stringy matter, and raw sewage.
- Powered by a 30 kW four-pole three-phase 415 V TEFC motor running at 1,450 RPM with IP55 rating.
- Maximum shut-off head reaches 16 m (23 PSI) at zero flow.
- Mounted on a heavy structural steel base plate for rock-solid stability and vibration dampening.
- Front clean-out port allows swift blockage clearance without uncoupling 8-inch pipework.
- Includes Aussie Pumps 3-year commercial GMP warranty coverage.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What maximum particle size passes through the internal non clog water channels?
Massive internal waterways on the Aussie Pumps GMP High Volume Semi-Trash B8XR-A (GB8XR-A 30KW) pass spherical debris, slurry rubble, and solid objects up to 70 mm in diameter without bridging.
What electrical power and terminal phase hookup are required for operation?
The GB8XR-A 30KW requires a three-phase 415 V supply to power a 30 kW four-pole electric motor rated at 1450 RPM with an IP55 enclosure.
What pipe connection fittings are standard on this high volume pump?
Standard eight-inch flanged suction ports on the GB8XR-A-30KW and discharge connections allow direct coupling to high-capacity municipal and site pipelines.
How does the structural steel base facilitate crane and excavator rigging on mine sites?
The 625 kg GB8XR A 30KW sits on a reinforced structural channel skid with dedicated center lifting points for crane and excavator rigging.
How does liquid delivery perform across maximum flow capacity and discharge height?
For the B8XR-A (GB8XR-A 30KW), hydraulic output generates a maximum delivery volume of approximately 7500 L/min and reaches an elevation head of approximately 16 m.
