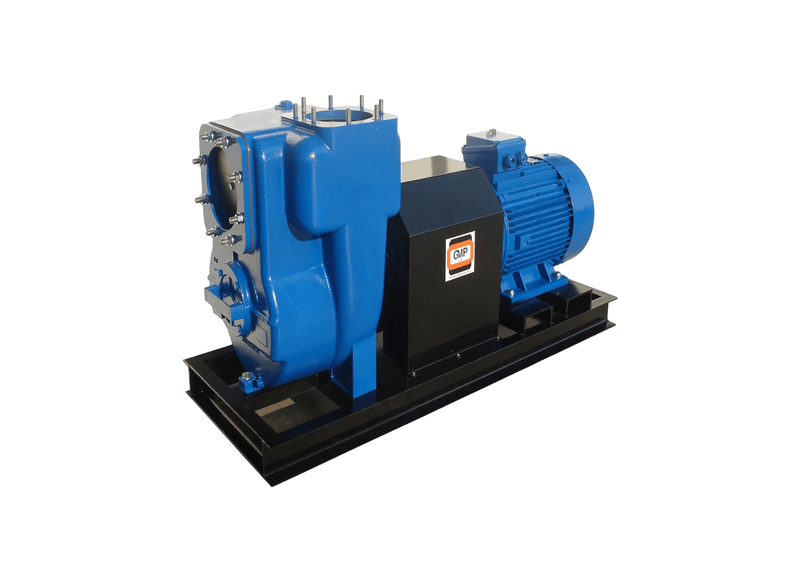

Aussie Pumps GMP GB8XR-A 37KWEB01 Cast Iron Three Phase Semi-Trash Pump with Open Impeller
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Civil flood response stations, major municipal bypass systems, and bulk mine dewatering sites deploy the Aussie GMP B8XR-A motor-driven unit . An ultra-heavy steel channel bed anchors the assembly, preventing deflection under colossal hydraulic momentum.
Peak volumetric delivery achieves an unmatched 8,300 L/min open discharge at zero head, producing a maximum shut-off head of 20 m (28 PSI) at zero flow. The heavy cast iron chamber houses an open trash impeller configured to process suspended solids up to 70 mm cleanly.
Maximum electrical drive is supplied by a 37 kW four-pole three-phase 415 V TEFC motor running at 1,450 RPM with IP55 protection, supplied unwired for switchboard integration. The self-priming wet end lifts fluid from vertical depths of 6 m without a suction foot valve.
Volute longevity is protected by a sacrificial wear plate and 316 stainless shaft against fluid wear up to 70°C intermittently. The front inspection hatch unbolts swiftly for rapid chamber de-silting without moving 8-inch lines. 3-year Aussie Pumps warranty.
Features- Highest-volume electric pump in catalog: delivers up to 8,300 L/min open discharge throughput.
- Handles enormous 70 mm spherical solids without binding or volute blockage.
- High-power 37 kW four-pole three-phase 415 V TEFC motor configured for IP55 industrial standards.
- Develops a 20 m maximum shut-off head (28 PSI) at zero flow.
- Structural channel-steel base plate isolates mechanical vibration and holds coupling alignment.
- Front-mounted access hatch streamlines maintenance and debris clearance without pipe removal.
- Protected by an Aussie Pumps 3-year GMP pump warranty.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What fluid displacement per minute and total pumping head are engineered into the casing?
Under full electrical power, the Aussie Pumps GMP High Volume Semi-Trash B8XR-A (GB8XR-A 37KWEB01) discharges up to approximately 8300 L/min at maximum volume and develops an elevation head of approximately 20 m.
What spherical waste matter can pass through the internal suction and discharge ports?
The eight-inch open impeller on the GB8XR-A 37KWEB01 accommodates suspended rocks, flood debris, and spherical solids up to 70 mm across without jamming.
Which incoming voltage and motor kilowatt output drive the pump wet end?
For the GB8XR-A-37KWEB01, shaft torque originates from a heavy four-pole three-phase electric motor delivering 37 kW on 415 V within an IP55 enclosure.
How easily can operators clear trapped debris through the front inspection port?
A massive front inspection hatch on the GB8XR A 37KWEB01 unbolts swiftly to expose internal chambers for rapid clearing of debris without pipe disconnection.
From what depth can the self priming casing pull fluid vertically from sumps?
For the B8XR-A (GB8XR-A 37KWEB01), the self-priming chamber evacuates intake air automatically to draw liquid vertically from depths up to 6 m without a foot valve.
