SKU: QP209/GX200

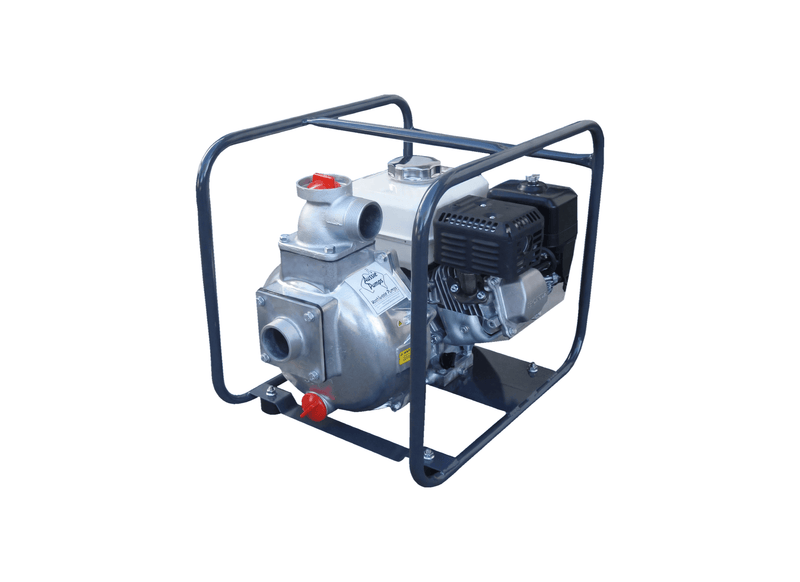

Aussie Pumps Industrial QP209/GX200 Aluminium 6.5HP Gusher Pump with Honda GX200 Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Cattle graziers and irrigation farmers run the Aussie Quik Prime (QP209/GX200) high flow gusher pump for rapid stock tank replenishment and bulk water transfer from river intakes. The increased engine displacement delivers plenty of reserve power to hold high flow through wide delivery hoses. A large priming chamber draws water rapidly from surface pools without external priming valves.
Bulk fluid delivery achieves a maximum delivery rate of 800 L/min and develops a maximum elevation head of 33 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 30 kg in dry operating trim.
Mechanical drive is provided by a Honda GX200 6.5HP recoil start petrol engine producing 6.5 HP. Plumbing connections incorporate 2" BSP male inlet & 2" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with anti-vibration mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- An open vane cast iron impeller moves 800 L/min with low petrol fuel usage.
- Big ports keep 800 L/min transfer rates flowing through 2-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Aussie Pumps covers the pump end for 5 years with 3-year Honda GX engine warranty support.
SPECIFICATIONS
| Max Flow | 800 L/Min |
| Max Head | 33 m |
| Power | Honda GX200 Petrol Engine |
| Suitable For | Flood Irrigation |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What pipe connection sizes and manifold types come standard?
The Aussie Pumps Aussie Petrol Gushers QP209 GX200 (QP209/GX200) features 50 mm BSP intake threading and 50 mm BSP delivery ports for flexible pipe and hose connections.
How much liquid volume and elevation pressure can this pump provide?
The QP209/GX200 provides up to 800 L/min in water flow and up to 33 m in elevation head, with actual delivery determined by the operating point.
What warranty terms and spare parts backing apply in Australia?
The QP209-GX200 is covered by a 5-year pump end warranty, 3-year Honda GX engine warranty, with complete spare parts access and factory documentation available Australia-wide.
What type of power unit and starting method are fitted?
The QP209 GX200 features a Honda GX200 6.5HP recoil start petrol engine, incorporating a manual recoil pull starter to get pumping quickly.
From what vertical depth can this self priming unit draw water?
The Aussie QP209/GX200 achieves rapid self-priming from up to 7.6 m vertical suction lift, drafting water from open sources without manual line filling once charged.
