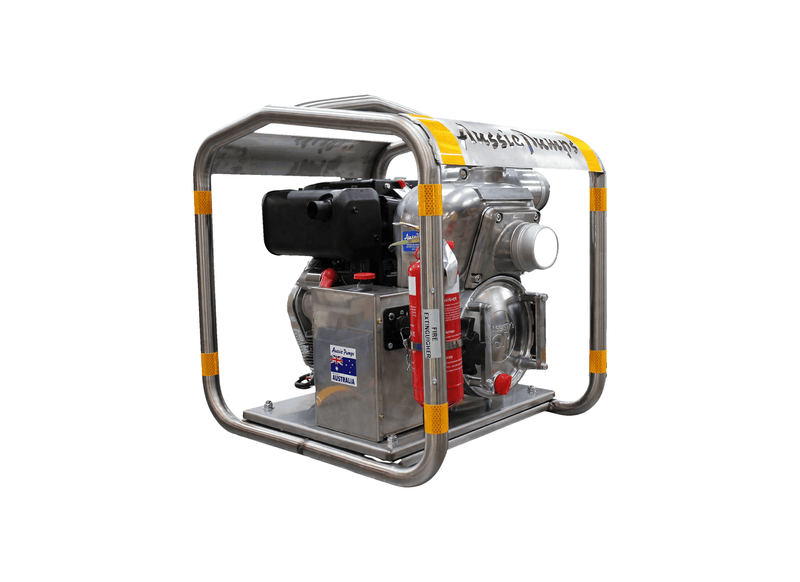

Aussie Pumps Industrial QP301T/L70 Aluminium 7HP Trash Pump with Yanmar L70 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Quarry drainage supervisors operate the Aussie Quik Prime (QP301T/L70) diesel recoil trash pump with three-inch ports to dewater aggregate washing sumps and gravel pit low points. The high-torque diesel engine powers the ductile iron impeller through dense slurry mixtures with ease. Replaceable internal wear plates resist erosion from sharp granite and sand particles.
Civil dewatering capacity achieves a maximum delivery rate of 1150 L/min and develops a maximum elevation head of 24 m. Internal casing clearances allow spherical solids up to 25 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 100 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L70 7HP recoil start diesel engine producing 7 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.5 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel carry frame with anti-vibration mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength cast alloy casing lets this 3-inch stand up to abrasive slurry pumping.
- Big belly priming chamber picks up prime fast from 7.5 m.
- Tough ductile iron casting passes suspended debris up to 25 mm diameter without clogging.
- Inspect the pump impeller chamber in seconds through the quick-release front port.
- Abrasion-resistant silicon carbide seal faces stop liquid leakage in muddy slurry.
- A fully welded carry frame protects the 3-inch on rough sites.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 1150 L/Min |
| Max Head | 24 m |
| Power | Yanmar L70 Diesel Engine |
| Suitable For | Construction Dewatering |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor drive and ignition setup power this water pump?
Driven by a genuine Yanmar L70 7HP recoil start diesel engine, the Aussie Pumps Aussie Diesel Trash Pumps QP301T L70 (QP301T/L70) utilizes a manual recoil pull starter for reliable operation in the field.
How are muddy slurry blockages inspected and cleared from the casing?
Capable of passing up to 25 mm spherical solids, the QP301T/L70 includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
What maximum pumping volume and static head does this equipment develop?
Rated for a maximum flow of 1150 L/min and a maximum head of 24 m, the QP301T-L70 adjusts volumetric output across its performance curve.
What factory warranty backing and technical support are included?
Equipment reliability for the QP301T L70 is backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, offering nationwide service agent and spare parts support.
Which pipe thread sizes and outlet options are featured?
Fitted with a 80 mm BSP suction port and 80 mm BSP discharge arrangement, the Aussie QP301T/L70 connects straightforwardly to field hoses.
