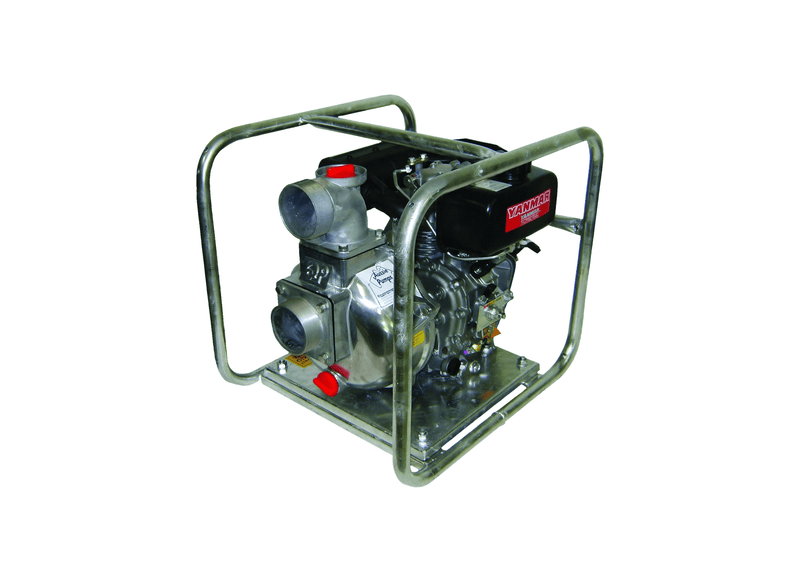

Aussie Pumps Industrial QP303/L48 Aluminium 4.8HP Gusher Pump with Yanmar L48 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Rural properties and mobile fencing teams operate the Aussie Quik Prime (QP303/L48) diesel recoil gusher pump with wide ports for draining agricultural channels, dam skimming, and paddock water distribution. Economical diesel fuel consumption delivers hours of steady pumping on a single tank of fuel. Wide suction and discharge openings allow water throughput for fast job completion.
Bulk fluid delivery achieves a maximum delivery rate of 1000 L/min and develops a maximum elevation head of 30 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 45 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP recoil start diesel engine producing 4.8 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with anti-vibration mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- An open vane cast iron impeller moves 1000 L/min with low diesel fuel usage.
- Big ports keep 1000 L/min transfer rates flowing through 3-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1000 L/Min |
| Max Head | 30 m |
| Power | Yanmar L48 Diesel Engine |
| Suitable For | Tanker Fill |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
From what vertical depth can this self priming unit draw water?
The Aussie Pumps Aussie Diesel Gushers QP303 L48 (QP303/L48) achieves rapid self-priming from up to 7.6 m vertical suction lift, drafting water from open sources without manual line filling once charged.
What manufacturer warranty periods protect this pump and motor?
Protection for the QP303/L48 includes a 5-year pump end warranty, 2-year Yanmar engine warranty, providing verified Australian warranty backing and technical support.
What engine powerhead and starter arrangement drive this unit?
Power for the QP303-L48 comes from a Yanmar L48 4.8HP recoil start diesel engine, equipped with a manual recoil pull starter for straightforward field deployment.
What inlet size and discharge port options come equipped on this unit?
Suction intake on the QP303 L48 is provided via 80 mm BSP threading, with delivery directed through 80 mm BSP fittings.
What delivery volume and vertical lift limits are specified?
Hydraulic output for the Aussie QP303/L48 reaches up to 1000 L/min in volumetric flow and up to 30 m in total head, depending on system duty.
