SKU: QP303/L70E

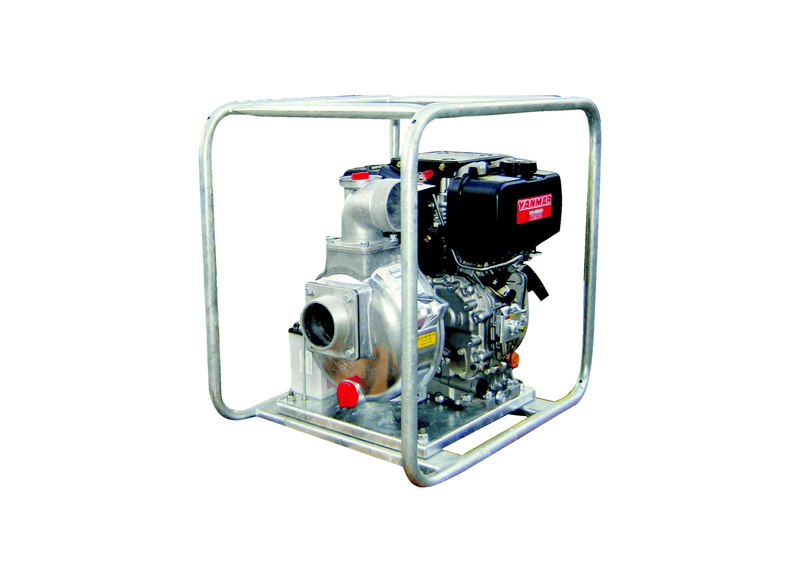

Aussie Pumps Industrial QP303/L70E Aluminium 7HP Gusher Pump with Yanmar L70E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Broadacre grain growers and commercial cattle feedlots run the Aussie Quik Prime (QP303/L70E) electric start diesel gusher pump with wide ports for bulk water transfers, manure pond cycling, and rapid road tanker filling. The high-torque diesel engine provides strong, steady pumping power across lengthy daily shifts. Electric key ignition simplifies operation on busy commercial farming enterprises.
Bulk fluid delivery achieves a maximum delivery rate of 1000 L/min and develops a maximum elevation head of 30 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 70 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L70 7HP electric start diesel engine (battery supplied separately) producing 7 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- An open vane cast iron impeller moves 1000 L/min with low diesel fuel usage.
- Big ports keep 1000 L/min transfer rates flowing through 3-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1000 L/Min |
| Max Head | 30 m |
| Power | Yanmar L70 Diesel Electric Start Engine |
| Suitable For | Construction Dewatering |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What volumetric flow capacity and vertical elevation apply to this unit?
The Aussie Pumps Aussie Diesel Gushers QP303 L70E (QP303/L70E) delivers a maximum flow rate of 1000 L/min and develops a maximum head of 30 m, depending on site operating conditions.
What engine drive and starting mechanism power this assembly?
Mechanical power for the QP303/L70E is supplied by a Yanmar L70 7HP electric start diesel engine, started via an electric key start ignition.
What plumbing connections and discharge port arrangements are fitted?
Plumbing connections for the QP303-L70E incorporate 80 mm BSP male intake and 80 mm BSP fittings, matching standard suction and delivery lines.
How deep can this unit prime liquid from open water sources?
The QP303 L70E provides self-priming capability from up to 7.6 m vertical suction lift, picking up prime swiftly without requiring external line priming.
What factory warranty protection and service support are provided?
Backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, the Aussie QP303/L70E is supported by authorized service agents and genuine spare parts across Australia.
