Roll over image to zoom
SKU: QP203T/L48E

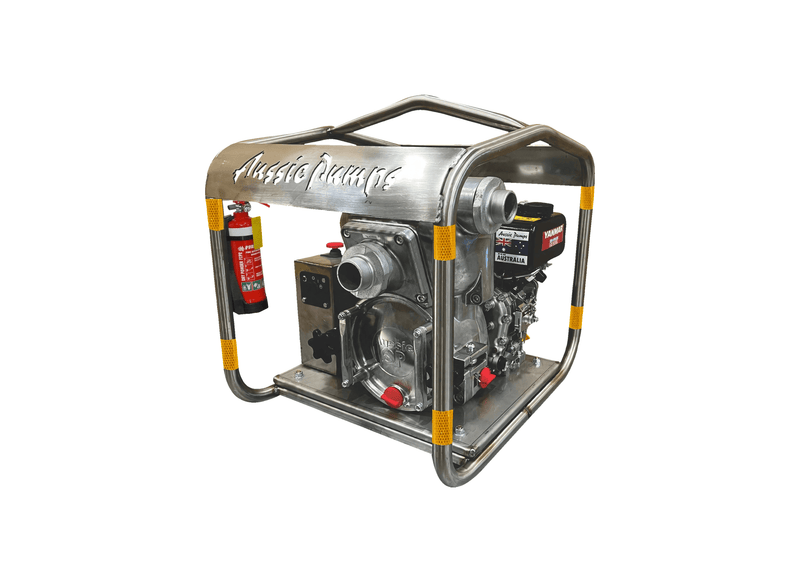

Aussie Pumps Mine Boss QP203T/L48E Aluminium 4.8HP Trash Pump with Yanmar L48E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Local council road maintenance teams and civil utility workers run the Aussie Quik Prime (QP203T/L48E) electric start diesel trash pump for unattended dewatering along road cuttings and civil drainage swales. The diesel engine delivers solid fuel efficiency for long, uninterrupted pumping shifts. Silicon carbide mechanical seals and a ductile iron impeller handle abrasive muddy water steadily.
Civil dewatering capacity achieves a maximum delivery rate of 600 L/min and develops a maximum elevation head of 27 m. Internal casing clearances allow spherical solids up to 20 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 75 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP electric start diesel engine (battery supplied separately) producing 4.8 HP. Plumbing connections incorporate 2" BSP male inlet & 2" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.3 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel carry frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength casing structure stands up to abrasive slurry season after season through 2-inch porting.
- A large internal liquid reservoir delivers fast self-priming from 7.3 m depth.
- Abrasion-proof ductile iron impeller clears 20 mm solids without binding.
- A quick-release front port allows rapid impeller chamber inspection without disconnecting lines.
- Silicon carbide seal faces keep muddy slurry from leaking at the shaft.
- Robust carry frame keeps the engine and pump safe around the site.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 27 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Mine Waste Pump Out |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What pipe connection sizes and manifold types come standard?
The Aussie Pumps QP203T (QP203T/L48E) features 50 mm BSP intake threading and 50 mm BSP delivery ports for flexible pipe and hose connections.
How much liquid volume and elevation pressure can this pump provide?
The QP203T/L48E provides up to 600 L/min in water flow and up to 27 m in elevation head, with actual delivery determined by the operating point.
What warranty terms and spare parts backing apply in Australia?
The QP203T-L48E is covered by a 5-year pump end warranty, 2-year Yanmar engine warranty, with complete spare parts access and factory documentation available Australia-wide.
What type of power unit and starting method are fitted?
The QP203T L48E features a Yanmar L48 4.8HP electric start diesel engine, incorporating an electric key start ignition to get pumping quickly.
How are suspended solids and muddy slurry handled during excavation dewatering?
Capable of passing up to 20 mm spherical solids, the Aussie QP203T/L48E includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
