SKU: QP203T/L48EMS2

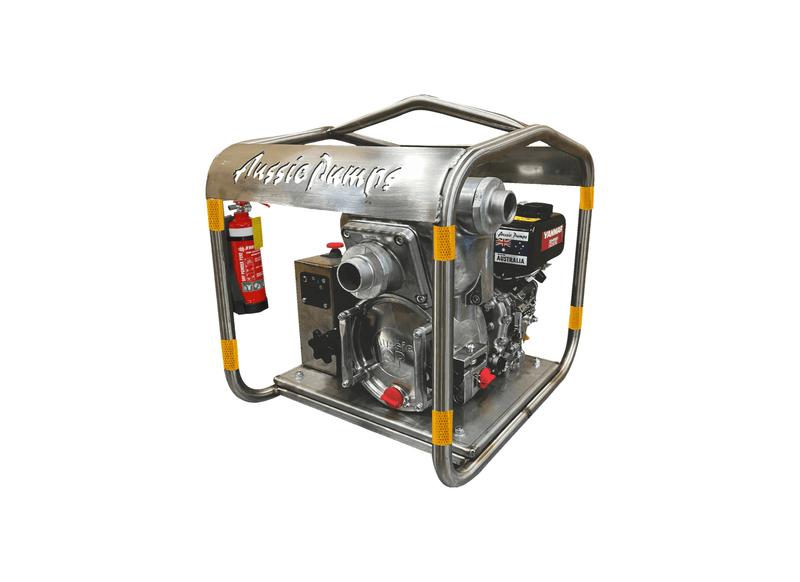

Aussie Pumps Mine Boss QP203T/L48EMS2 Aluminium 4.8HP Trash Pump with Yanmar L48EMS2 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Mine site maintenance contractors deploy the Aussie Mine Boss (QP203T/L48EMS2) two-inch diesel trash pump across equipment wash pads and drainage sumps to clear muddy runoff water. Fitted with mandatory electrical isolation switches and emergency stop controls, it complies with strict mining safety protocols. Silicon carbide seal faces and ductile iron internals withstand continuous abrasive slurry contact.
Civil dewatering capacity achieves a maximum delivery rate of 600 L/min and develops a maximum pressure of 38 psi. Internal casing clearances allow spherical solids up to 20 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 85 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP electric start diesel engine (includes gel battery & isolation switch) producing 4.8HP (3.5kW) Diesel. Plumbing connections incorporate 2" BSP male inlet & 2" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.3 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Stainless steel roll frame with lifting bar, battery isolation, E-stop and fire extinguisher encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength casing structure stands up to abrasive slurry season after season through 2-inch porting.
- Big belly priming chamber picks up prime fast from 7.3 m.
- Tough ductile iron casting passes suspended debris up to 20 mm diameter without clogging.
- Inspect the pump impeller chamber in seconds through the quick-release front port.
- Abrasion-resistant silicon carbide seal faces stop liquid leakage in muddy slurry.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 27 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Livestock Waste Disposal |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does this assembly satisfy resource sector site safety requirements?
Built to satisfy Australian resource site safety rules, the Aussie Pumps Mine Boss QP203T (QP203T/L48EMS2) incorporates a welded stainless steel frame, lockable battery isolation switch, and emergency stop control.
Which warranty terms cover the pump casing and drive engine?
Protection for the QP203T/L48EMS2 includes a 5-year pump end warranty, 2-year Yanmar engine warranty, providing verified Australian warranty backing and technical support.
How is the drive engine configured and started on this unit?
Power for the QP203T-L48EMS2 comes from a Yanmar L48 4.8HP electric start diesel engine, equipped with an electric key start ignition for straightforward field deployment.
Which suction and delivery port fittings are included?
Suction intake on the QP203T L48EMS2 is provided via 50 mm BSP threading, with delivery directed through 50 mm BSP fittings.
What peak flow rate and pumping head are achievable?
Hydraulic output for the Aussie QP203T/L48EMS2 reaches up to 600 L/min in volumetric flow and up to 27 m in total head, depending on system duty.
