SKU: QP300T/L48EMS2

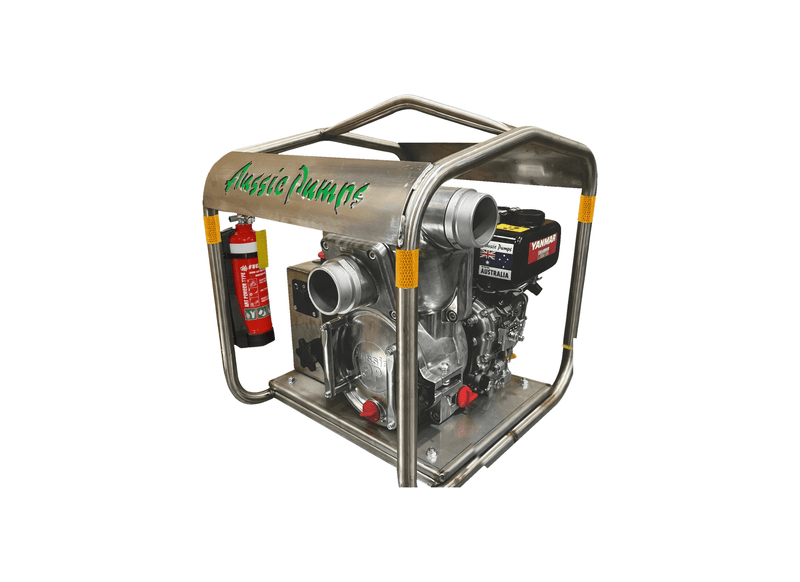

Aussie Pumps Mine Boss QP300T/L48EMS2 Aluminium 4.8HP Trash Pump with Yanmar L48EMS2 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Quarry safety supervisors station the Aussie Mine Boss (QP300T/L48EMS2) three-inch diesel trash pump near aggregate crushing plants to pump out waterlogged drainage pits and sediment basins. The mine-compliant electrical package includes an isolated battery enclosure, lockout switch, and emergency shutdown button. Self-priming hydraulics draw dirty water swiftly without requiring external priming valves.
Civil dewatering capacity achieves a maximum delivery rate of 850 L/min and develops a maximum pressure of 38 psi. Internal casing clearances allow spherical solids up to 20 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 85 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP electric start diesel engine (includes gel battery & isolation switch) producing 4.8HP (3.5kW) Diesel. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.4 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Stainless steel roll frame with lifting bar, battery isolation, E-stop and fire extinguisher encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength cast alloy casing lets this 3-inch stand up to abrasive slurry pumping.
- Big belly priming chamber picks up prime fast from 7.4 m.
- Tough ductile iron casting passes suspended debris up to 20 mm diameter without clogging.
- Inspect the pump impeller chamber in seconds through the quick-release front port.
- Abrasion-resistant silicon carbide seal faces stop liquid leakage in muddy slurry.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 850 L/Min |
| Max Head | 27 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Waste Water Handling |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What length of manufacturer warranty coverage protects this equipment?
Coverage for the Aussie Pumps Mine Boss QP300T (QP300T/L48EMS2) includes a 5-year pump end warranty, 2-year Yanmar engine warranty, supported by certified service facilities and parts availability throughout Australia.
How is the plumbing connection arranged for intake and discharge lines?
The QP300T/L48EMS2 is plumbed with 80 mm BSP male suction threading and 80 mm BSP discharge ports, allowing fast hookup on site.
What safety features allow this pump to operate across resource tenements?
Built to satisfy Australian resource site safety rules, the QP300T-L48EMS2 incorporates a welded stainless steel frame, lockable battery isolation switch, and emergency stop control.
What are the discharge limits for volumetric flow and total head?
The QP300T L48EMS2 achieves a maximum flow capacity of 850 L/min and a maximum head limit of 27 m, varying across operating requirements.
Which engine package and start type are installed?
The Aussie QP300T/L48EMS2 operates on a Yanmar L48 4.8HP electric start diesel engine, utilizing an electric key start ignition to drive the hydraulic pump assembly.
