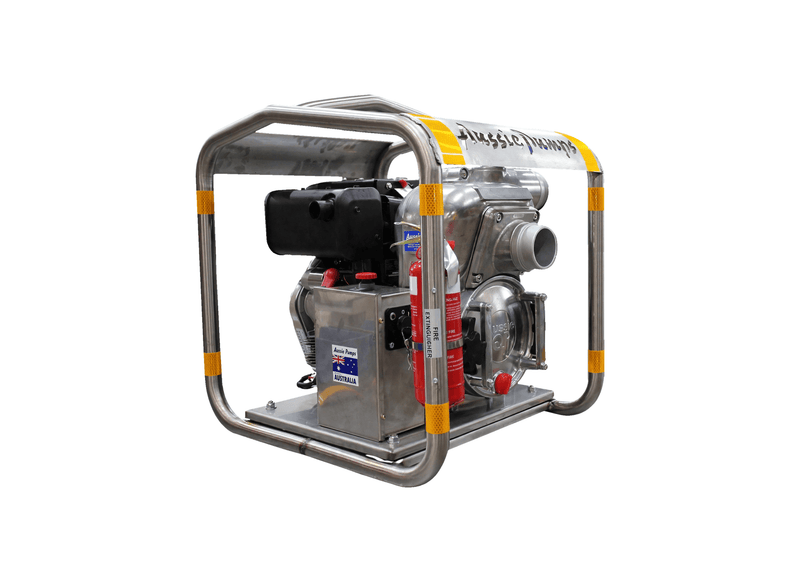

Aussie Pumps Mine Boss QP301T/L100EMS2 Aluminium 10HP Trash Pump with Yanmar L100EMS2 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Resource sector infrastructure crews operate the Aussie Mine Boss (QP301T/L100EMS2) heavy three-inch diesel trash pump for high volume dewatering of flooded mine pits and plant access tunnels. Built into a stainless steel safety roll frame with full electrical isolation, it delivers endurance under severe mining duties. Large internal passages swallow rocks, sand, and mud without hesitation.
Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia. stainless steel roll frame with lifting bar, battery isolation, E-stop, fire extinguisher encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays.
Civil dewatering capacity achieves a maximum delivery rate of 1,200 L/min and develops a maximum pressure of 34 psi. Internal casing clearances allow spherical solids up to 25 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 130 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (includes gel battery & isolation switch) producing 10HP (7.4kW) Diesel. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.5 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Features
- High strength casing structure stands up to abrasive slurry season after season through 3-inch porting.
- Big belly priming chamber picks up prime fast from 7.5 m.
- Tough ductile iron casting passes suspended debris up to 25 mm diameter without clogging.
- Inspect the pump impeller chamber in seconds through the quick-release front port.
- Abrasion-resistant silicon carbide seal faces stop liquid leakage in muddy slurry.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 1200 L/Min |
| Max Head | 24 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Effluent Pump Out |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What flow throughput and total head elevation does this unit produce?
The Aussie Pumps Mine Boss QP301T (QP301T/L100EMS2) delivers a maximum flow rate of 1,200 L/min and develops a maximum head of 24 m, depending on site operating conditions.
What drive engine and starter mechanism provide mechanical power?
Mechanical power for the QP301T/L100EMS2 is supplied by a Yanmar L100 10HP electric start diesel engine, started via an electric key start ignition.
What port threading and discharge manifold fittings are supplied?
Plumbing connections for the QP301T-L100EMS2 incorporate 80 mm BSP male intake and 80 mm BSP fittings, matching standard suction and delivery lines.
Which mine site compliance hardware and electrical isolation are installed?
Built to satisfy Australian resource site safety rules, the QP301T L100EMS2 incorporates a welded stainless steel frame, lockable battery isolation switch, and emergency stop control.
How is warranty coverage structured for the pump end and engine?
Backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, the Aussie QP301T/L100EMS2 is supported by authorized service agents and genuine spare parts across Australia.
