SKU: QP303/L48EMS2

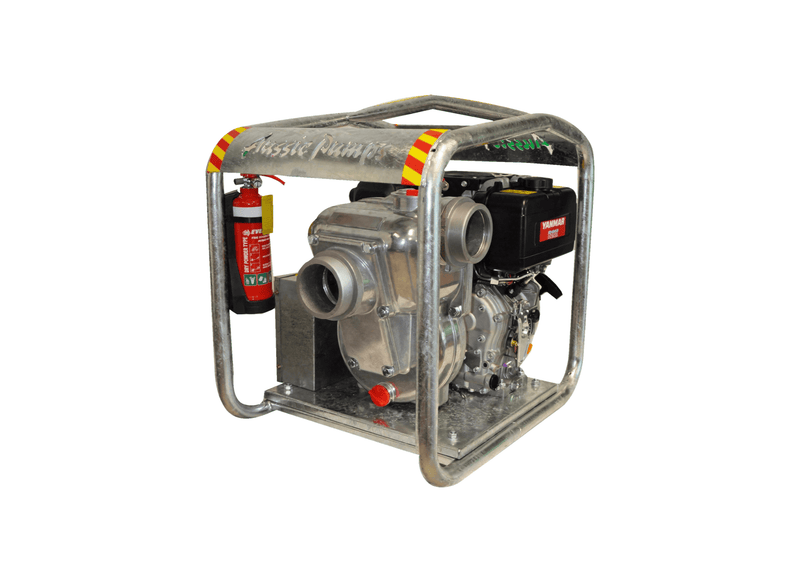

Aussie Pumps Mine Boss QP303/L48EMS2 Aluminium 4.8HP Gusher Pump with Yanmar L48EMS2 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Mine maintenance contractors and quarry site teams operate the Aussie Mine Boss Quik Prime (QP303/L48EMS2) diesel transfer pump for clearing waterlogged workshops, plant access tracks, and drainage pits across resource sites. Equipped with a lockable battery isolator, emergency stop switch, and stainless frame, it satisfies mine safety standards. The open transfer impeller moves muddy surface water quickly to keep haulage routes dry.
Bulk fluid delivery achieves a maximum delivery rate of 1050 L/min and develops a maximum elevation head of 30 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 55 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP electric start diesel engine (includes sealed gel battery) producing 4.8 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Mine Boss structural stainless steel frame with center lifting bar, lockable battery isolation, E-stop & fire extinguisher encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- An open vane cast iron impeller moves 1050 L/min with low diesel fuel usage.
- Big ports keep 1050 L/min transfer rates flowing through 3-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- Mine-spec safety package with stainless steel roll frame, lockable battery isolation switch and emergency stop button.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1050 L/Min |
| Max Head | 30 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Construction and Mine Site Dewatering |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What volumetric flow capacity and vertical elevation apply to this unit?
The Aussie Pumps Mine Boss Gushers QP303 L48EMS2 (QP303/L48EMS2) delivers a maximum flow rate of 1050 L/min and develops a maximum head of 30 m, depending on site operating conditions.
What engine drive and starting mechanism power this assembly?
Mechanical power for the QP303/L48EMS2 is supplied by a Yanmar L48 4.8HP electric start diesel engine, started via an electric key start ignition.
What plumbing connections and discharge port arrangements are fitted?
Plumbing connections for the QP303-L48EMS2 incorporate 80 mm BSP male intake and 80 mm BSP fittings, matching standard suction and delivery lines.
What safety features allow this pump to operate across resource tenements?
Built to satisfy Australian resource site safety rules, the QP303 L48EMS2 incorporates a welded stainless steel frame, lockable battery isolation switch, and emergency stop control.
What factory warranty protection and service support are provided?
Backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, the Aussie QP303/L48EMS2 is supported by authorized service agents and genuine spare parts across Australia.
