SKU: QP310SL/L100EMS2

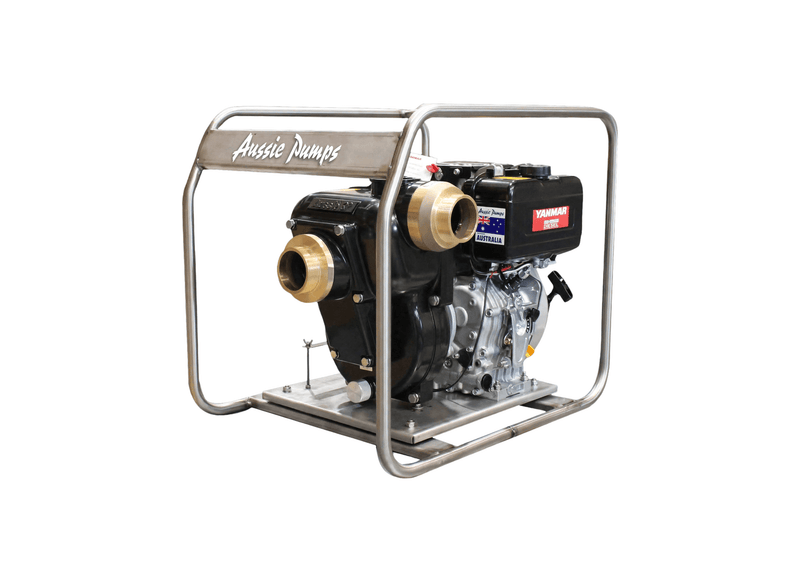

Aussie Pumps Mine Boss QP310SL/L100EMS2 Aluminium 10HP Water Transfer Pump with Yanmar L100EMS2 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Quarry managers and mining haul road maintenance teams operate the Aussie Mine Boss Brigade Boss (QP310SL/L100EMS2) high head diesel pump to fill haul truck dust suppression sprays and wash down quarry crushing machinery. Fully equipped with a battery isolation switch, emergency stop button, and stainless steel roll frame, it meets mining site safety codes. The high head impeller moves water steadily against elevation changes across quarry pits.
High head water delivery achieves a maximum delivery rate of 1150 L/min and develops a maximum elevation head of 50 m. Internal hydraulic architecture features a marine grade aluminium casing, a closed aluminium high head impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 120 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (includes sealed gel battery) producing 10 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 8 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Mine Boss structural stainless steel frame with center lifting bar, lockable battery isolation, E-stop & fire extinguisher encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 3-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 8 m depth.
- High head performance comes from a big closed single impeller.
- Big ports keep 1150 L/min transfer rates flowing through 3-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 1150 L/Min |
| Max Head | 50 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Washdown |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor configuration and ignition system drive the pump?
Driven by a genuine Yanmar L100 10HP electric start diesel engine, the Aussie Pumps Mine Boss High Head QP310SL L100EMS2 (QP310SL/L100EMS2) utilizes an electric key start ignition for reliable operation in the field.
Which mine site compliance hardware and electrical isolation are installed?
Built to satisfy Australian resource site safety rules, the QP310SL/L100EMS2 incorporates a welded stainless steel frame, lockable battery isolation switch, and emergency stop control.
What maximum water delivery and discharge head are developed?
Rated for a maximum flow of 1150 L/min and a maximum head of 50 m, the QP310SL-L100EMS2 adjusts volumetric output across its performance curve.
How is this unit covered under manufacturer warranty terms?
Equipment reliability for the QP310SL L100EMS2 is backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, offering nationwide service agent and spare parts support.
How are the inlet and outlet ports configured on this pump?
Fitted with a 80 mm BSP suction port and 80 mm BSP discharge arrangement, the Aussie QP310SL/L100EMS2 connects straightforwardly to field hoses.
