SKU: QP310SX/L100EMS2

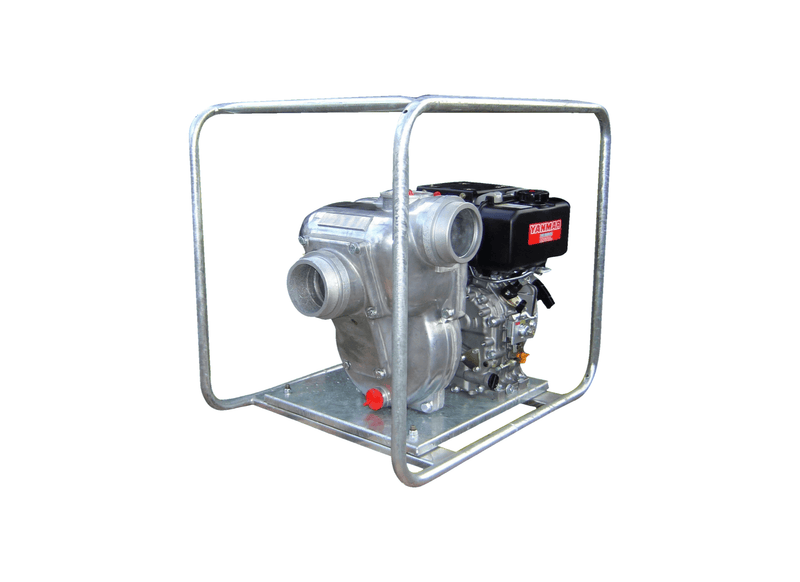

Aussie Pumps Mine Boss QP310SX/L100EMS2 Aluminium 10HP Water Transfer Pump with Yanmar L100EMS2 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Exploration drillers and mining portal drainage crews commission the Aussie Mine Boss Brigade Boss (QP310SX/L100EMS2) extra high head diesel pump to evacuate seepage water out of deep pit benches and incline drives. Featuring full mine site electrical isolation, emergency engine shutdown, and a stainless steel cage, it satisfies mining safety requirements. Specialized high pressure hydraulics lift water steadily up steep vertical pit walls.
High head water delivery achieves a maximum delivery rate of 700 L/min and develops a maximum elevation head of 70 m. Internal hydraulic architecture features a marine grade aluminium casing, a closed aluminium high head impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass is 120 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (includes sealed gel battery) producing 10 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 8 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Mine Boss structural stainless steel frame with center lifting bar, lockable battery isolation, E-stop & fire extinguisher encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 3-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 8 m depth.
- Closed impeller hydraulics build 70 m of head while sipping diesel.
- Big ports keep 700 L/min transfer rates flowing through 3-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 700 L/Min |
| Max Head | 70 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Fire Fighting Mop Up |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the intake and discharge pipe connections laid out?
The Aussie Pumps Mine Boss Extra High Head QP310SX L100EMS2 (QP310SX/L100EMS2) features 80 mm BSP intake threading and 80 mm BSP delivery ports for flexible pipe and hose connections.
What volumetric fluid output and vertical dynamic head apply?
The QP310SX/L100EMS2 provides up to 700 L/min in water flow and up to 70 m in elevation head, with actual delivery determined by the operating point.
Which warranty terms and service agent networks support this unit?
The QP310SX-L100EMS2 is covered by a 5-year pump end warranty, 2-year Yanmar engine warranty, with complete spare parts access and factory documentation available Australia-wide.
How is this unit driven and what starting mechanics are provided?
The QP310SX L100EMS2 features a Yanmar L100 10HP electric start diesel engine, incorporating an electric key start ignition to get pumping quickly.
How does this assembly satisfy resource sector site safety requirements?
Built to satisfy Australian resource site safety rules, the Aussie QP310SX/L100EMS2 incorporates a welded stainless steel frame, lockable battery isolation switch, and emergency stop control.
