SKU: QP40T/L100E

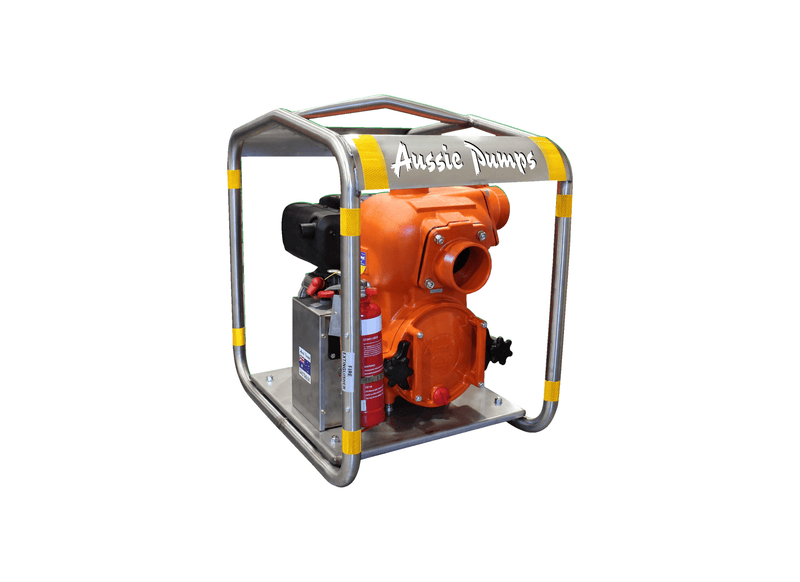

Aussie Pumps Mine Boss QP40T/L100E Aluminium 10HP Trash Pump with Yanmar L100E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Open cut mining contractors and large scale civil drainage crews deploy the Aussie Quik Prime (QP40T/L100E) four-inch diesel trash pump to manage site water inundation containing sand, mud, and suspended gravel. Internal casing clearances allow spherical solids to travel directly through the pump body without clogging. A fully welded carry frame protects mechanical assemblies across rough jobsites.
Civil dewatering capacity achieves a maximum delivery rate of 1600 L/min and develops a maximum elevation head of 24 m. Internal casing clearances allow spherical solids up to 38 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 133 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (battery supplied separately) producing 10 HP. Plumbing connections incorporate 4" BSP male inlet & 4" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel carry frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength casing structure stands up to abrasive slurry season after season through 4-inch porting.
- Big belly priming chamber picks up prime fast from 7.6 m.
- Tough ductile iron casting passes suspended debris up to 38 mm diameter without clogging.
- Inspect the pump impeller chamber in seconds through the quick-release front port.
- Abrasion-resistant silicon carbide seal faces stop liquid leakage in muddy slurry.
- A fully welded carry frame protects the 4-inch on rough sites.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 1600 L/Min |
| Max Head | 24 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Construction Dewatering |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor configuration and ignition system drive the pump?
Driven by a genuine Yanmar L100 10HP electric start diesel engine, the Aussie Pumps QP40T (QP40T/L100E) utilizes an electric key start ignition for reliable operation in the field.
How does this trash pump manage solid particles and chamber cleaning?
Capable of passing up to 38 mm spherical solids, the QP40T/L100E includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
What maximum water delivery and discharge head are developed?
Rated for a maximum flow of 1600 L/min and a maximum head of 24 m, the QP40T-L100E adjusts volumetric output across its performance curve.
How is this unit covered under manufacturer warranty terms?
Equipment reliability for the QP40T L100E is backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, offering nationwide service agent and spare parts support.
How are the inlet and outlet ports configured on this pump?
Fitted with a 100 mm BSP suction port and 100 mm BSP discharge arrangement, the Aussie QP40T/L100E connects straightforwardly to field hoses.
