SKU: QP40T/L100EMS2

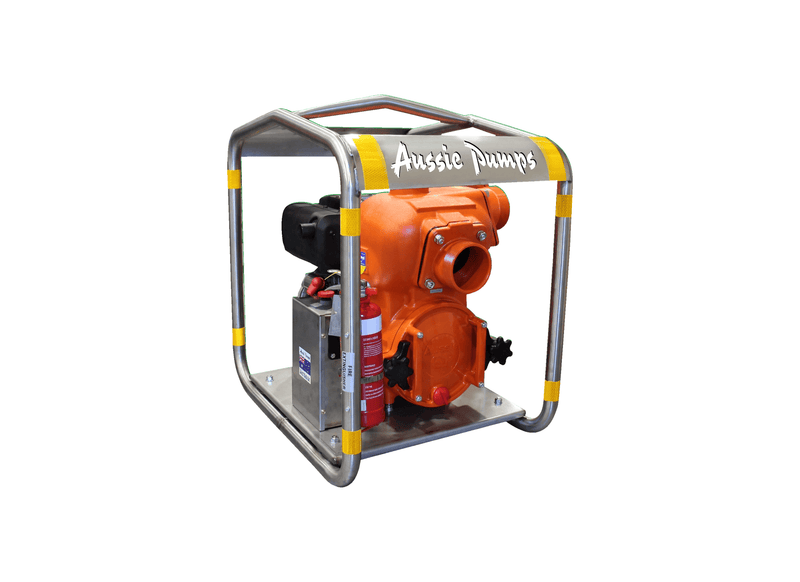

Aussie Pumps Mine Boss QP40T/L100EMS2 Aluminium 10HP Trash Pump with Yanmar L100EMS2 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Open pit mining superintendents commission the Aussie Mine Boss (QP40T/L100EMS2) four-inch diesel trash pump to evacuate deep sump water containing high concentrations of abrasive pit tailings and rock fragments. Full mine site compliance is delivered through factory-fitted battery lockout, emergency stop hardware, and structural framing. The front cleanout port enables swift chamber clearance during intensive site operations.
Civil dewatering capacity achieves a maximum delivery rate of 1,600 L/min and develops a maximum pressure of 34 psi. Total equipment mass is 145 kg in standard operating trim. Internal casing clearances allow spherical solids up to 38 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (includes gel battery & isolation switch) producing 10HP (7.4kW) Diesel. Plumbing connections incorporate 4" BSP male inlet & 4" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia. stainless steel roll frame with lifting bar, battery isolation, E-stop, fire extinguisher encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays.
Features
- High strength casing structure stands up to abrasive slurry season after season through 4-inch porting.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Abrasion-proof ductile iron impeller clears 38 mm solids without binding.
- A quick-release front port allows rapid impeller chamber inspection without disconnecting lines.
- Silicon carbide seal faces keep muddy slurry from leaking at the shaft.
- Mine-spec safety package with stainless steel roll frame, lockable battery isolation switch and emergency stop button.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1600 L/Min |
| Max Head | 24 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Mining |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor drive and ignition setup power this water pump?
Driven by a genuine Yanmar L100 10HP electric start diesel engine, the Aussie Pumps Mine Boss QP40T (QP40T/L100EMS2) utilizes an electric key start ignition for reliable operation in the field.
What emergency safety components and protective frame come fitted?
Built to satisfy Australian resource site safety rules, the QP40T/L100EMS2 incorporates a welded stainless steel frame, lockable battery isolation switch, and emergency stop control.
What maximum pumping volume and static head does this equipment develop?
Rated for a maximum flow of 1,600 L/min and a maximum head of 24 m, the QP40T-L100EMS2 adjusts volumetric output across its performance curve.
What factory warranty backing and technical support are included?
Equipment reliability for the QP40T L100EMS2 is backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, offering nationwide service agent and spare parts support.
Which pipe thread sizes and outlet options are featured?
Fitted with a 100 mm BSP suction port and 100 mm BSP discharge arrangement, the Aussie QP40T/L100EMS2 connects straightforwardly to field hoses.
