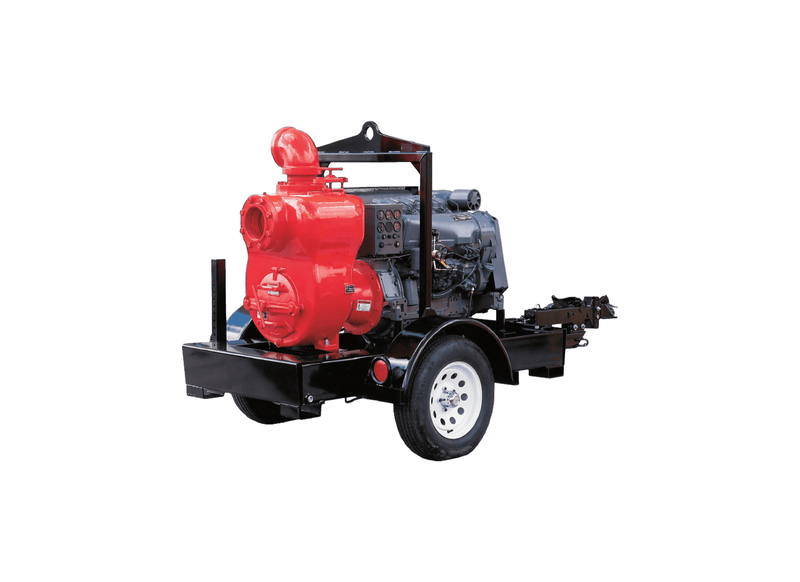

Aussie Pumps MQ600TD MQ600TD/80 Cast Iron 80HP Trailer Mount Trash Pump with Deutz Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Municipal sewer bypass, flood relief, and tailings dam pump-out are among the mobile dewatering duties suited to this highway-trailer configuration. Trailer mounting allows immediate towing to critical job sites. Built for proven fluid handling across demanding civil, mining, and municipal duties.
Hydraulic performance encompasses a maximum shut-off head of 46 m (65 PSI) at zero flow and an open-discharge flow capacity of up to 6,000 L/min at zero static head. The wear-resistant pump end handles large solids up to 76 mm (3"). Weight: 1,111 kg. Precision hydraulic architecture increases fluid delivery.
Features 6" x 6" ports, oil-lubricated tungsten/titanium carbide mechanical seals, adjustable 90° discharge elbow, shock-mounted LOFA control panel in water-resistant housing, and an integrated 152 L fuel tank supporting ~11 hours continuous runtime (battery ordered separately). Internal self-priming passages pick up prime rapidly without requiring an external foot valve.
Includes a front clean-out cover for fast debris clearance and unobstructed internal passages for efficient slurry flow. Backed by technical assembly diagrams, user manuals, and factory replacement parts stockists across Aussie Pumps distribution channels nationwide. Removable clean-out cover allows rapid inspection and debris clearance on site.
Features- Cast highway trailer mounting provides immediate mobility for emergency bypass jobs.
- Deutz F4L914 (80 HP / 60 kW) air-cooled diesel engine built for multi-day continuous pumping.
- Handles large-volume spherical solids up to 76 mm (3-inch) without pump blockages.
- Enormous 6-inch open-discharge volume up to 6,000 L/min at zero head, with a maximum shut-off head of 46 m (65 PSI) at zero flow.
- LOFA engine control panel with low oil pressure, temp, and V-belt failure shutdowns.
- Large 152 L fuel tank allows ~11 hours of non-stop site operation.
- Includes Aussie Pumps 3-year pump warranty coverage alongside factory Deutz diesel engine warranty support.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What road-transit features equip this unit for high-speed site dispatch?
Mounted on a heavy tandem-axle highway trailer with overrun brakes, parking brake, and regulatory road lights, the Aussie Pumps Severe Duty Trash Trailer MQ600TD (MQ600TD/80) tows securely behind heavy service trucks between regional projects.
What motor delivers rotational drive and how does it start?
Shaft torque for the MQ600TD/80 originates from a turbocharged 80HP diesel engine, featuring electric key ignition.
How are internal blockages and solids cleared from the casing during dewatering?
Large solids up to approximately 75 mm pass through the non-clog impeller of the MQ600TD-80, with a rapid-access cleanout door allowing crews to remove obstructions in minutes.
What dynamic flow capacity and discharge pressure are developed?
Volumetric throughput on the MQ600TD 80 reaches a maximum flow rate of approximately 6,000 L/min and develops a maximum head of approximately 46 m.
Which factory warranty terms and replacement parts support apply nationwide?
The MQ600TD/80 is covered by a 3-year Aussie Pumps trash pump warranty and a 2-year diesel engine warranty, with complete spare parts access and factory documentation available Australia-wide.
