SKU: MQ600TD/80SKM

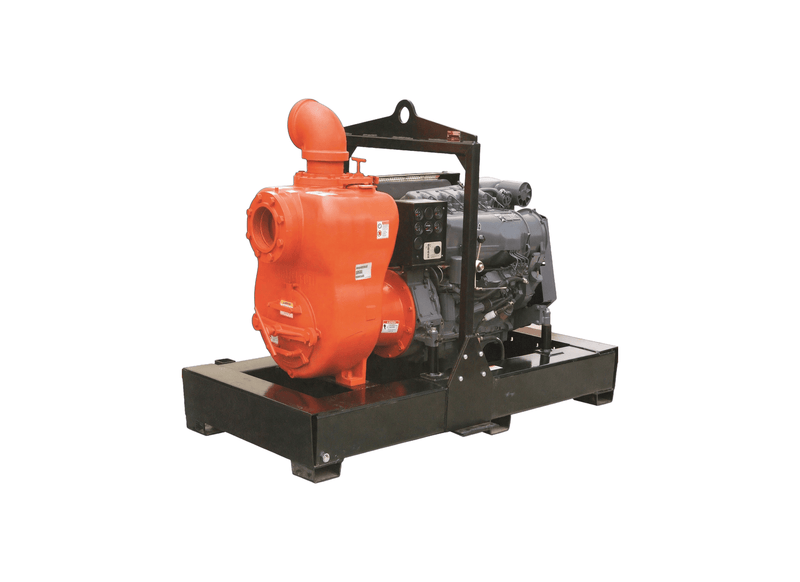

Aussie Pumps MQ600TD MQ600TD/80SKM Cast Iron 80HP Skid Mount Trash Pump with Deutz Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Continuous dewatering and demanding solids handling are central to this heavy diesel configuration, which processes solids-contaminated wastewater at high-volume flows. Steel skid mounting with a central lifting bar allows crane site movement on industrial jobs. Built for proven fluid handling across demanding agricultural, civil, and commercial operations.
Hydraulic performance encompasses a maximum shut-off head of 46 m (65 PSI) at zero flow and an open-discharge flow capacity of up to 6,000 L/min at zero static head. The wear-resistant volute and open impeller pass large solids up to 76 mm (3"). Dry weight: 960 kg in skid configuration. Precision hydraulic architecture increases fluid delivery.
Includes 6" x 6" ports, oil-lubricated tungsten/titanium carbide seals, adjustable 90° discharge elbow, LOFA shock-mounted control panel in a water-resistant housing (with hour meter, ammeter, tachometer, auto-shutdowns), and a 152 L fuel tank (~11 hr runtime). Self-primes to 7.6 m. Internal self-priming passages pick up prime rapidly.
Designed with an easy-access front clean-out port for rapid inspection and clearing of blockages without removing hoses. Technical assembly schematics, user guides, and genuine replacement parts are available through Aussie Pumps industrial distributor channels across Australia. Removable clean-out cover allows rapid inspection and debris clearance on site.
Features- Deutz F4L914 (80 HP / 60 kW) 4-cylinder air-cooled diesel engine for heavy industrial duty.
- Large-volume solids handling capability passes debris up to 76 mm (3-inch).
- High 6-inch open-discharge volume up to 6,000 L/min at zero head, with a maximum shut-off head of 46 m (65 PSI) at zero flow.
- LOFA shock-mounted control panel with engine safety shutdowns and instrument gauges.
- Integrated 152 L fuel tank delivers ~11 hours of continuous operation.
- Adjustable 90-degree discharge elbow and oil-lubricated tungsten/titanium carbide seals.
- Includes Aussie Pumps 3-year pump warranty coverage alongside factory Deutz diesel engine warranty support.
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the heavy steel skid base assist relocation across site works?
The structural steel skid base of the Aussie Pumps Severe Duty Trash Skid MQ600TD (MQ600TD/80SKM) features reinforced side channels and a balanced central lifting arch, facilitating drag positioning by site machinery or overhead crane rigging.
What open flow volume and total vertical elevation can be expected?
Peak hydraulic capability for the MQ600TD/80SKM encompasses up to approximately 6,000 L/min in liquid volume and up to approximately 46 m in vertical head.
What solids passage diameter and cleanout hatch access are engineered for severe slurries?
Passing spherical solids up to approximately 75 mm, the MQ600TD-80SKM includes a heavy front cleanout hatch for fast access to internal impeller chambers during severe mine dewatering.
Which combustion engine and ignition option are utilized?
The MQ600TD 80SKM is powered by a turbocharged 80HP diesel engine, which starts easily using electric turnkey start with full gauge panel.
How does the self priming mechanism perform from open water sources?
From depths of up to approximately 7.6 m vertical suction lift, the MQ600TD/80SKM establishes prime rapidly once charged.
