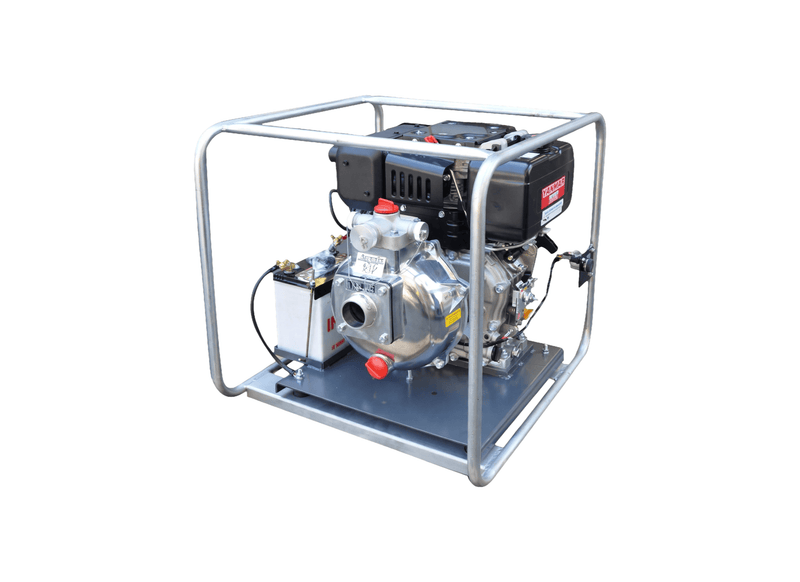

Aussie Pumps Mr T QPT205SLT/L100E Aluminium 10HP Twin Impeller Firefighting Pump with Yanmar L100E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Timber plantation contractors and hill country farmers deploy the Aussie Mr T (QPT205SLT/L100E) electric start diesel pump to lift water up steep mountain ridges to elevated firefighting water storage tanks. Staged twin closed aluminium impellers generate high head pressure to overcome substantial vertical elevations. Electric key starting and diesel fuel endurance provide steadfast pumping during critical fire season emergencies.
High elevation delivery volume achieves a maximum delivery rate of 450 L/min and develops a maximum pressure of 128 psi. Internal hydraulic architecture features a marine grade aluminium casing, twin closed aluminium impellers mounted on a single drive shaft, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 100 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (battery supplied separately) producing 10HP (7.4kW) Diesel. Plumbing connections incorporate 2" BSP male inlet, 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Galvanised steel roll frame with battery tray & leads encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- Precision matched dual aluminium impellers develop high discharge heads up to 90 m.
- A 3-way outlet (2 x 1-inch and 1 x 1.5-inch) with metal caps and chains feeds multiple hose lines.
- The serviceable suction valve holds prime in the casing between jobs.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 90 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Fire Fighting Mop Up |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor drive and ignition setup power this water pump?
Driven by a genuine Yanmar L100 10HP electric start diesel engine, the Aussie Pumps Mr T Twin Impeller (QPT205SLT/L100E) utilizes an electric key start ignition for reliable operation in the field.
How quickly does the pump establish prime from low water sources?
The QPT205SLT/L100E provides self-priming capability from up to 7.6 m vertical suction lift, picking up prime swiftly without requiring external line priming.
What maximum pumping volume and static head does this equipment develop?
Rated for a maximum flow of 450 L/min and a maximum head of 90 m, the QPT205SLT-L100E adjusts volumetric output across its performance curve.
What factory warranty backing and technical support are included?
Equipment reliability for the QPT205SLT L100E is backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, offering nationwide service agent and spare parts support.
Which pipe thread sizes and outlet options are featured?
Fitted with a 50 mm BSP suction port and 3-way (2 x 25 mm, 1 x 40 mm) BSP discharge arrangement, the Aussie QPT205SLT/L100E connects straightforwardly to field hoses.
