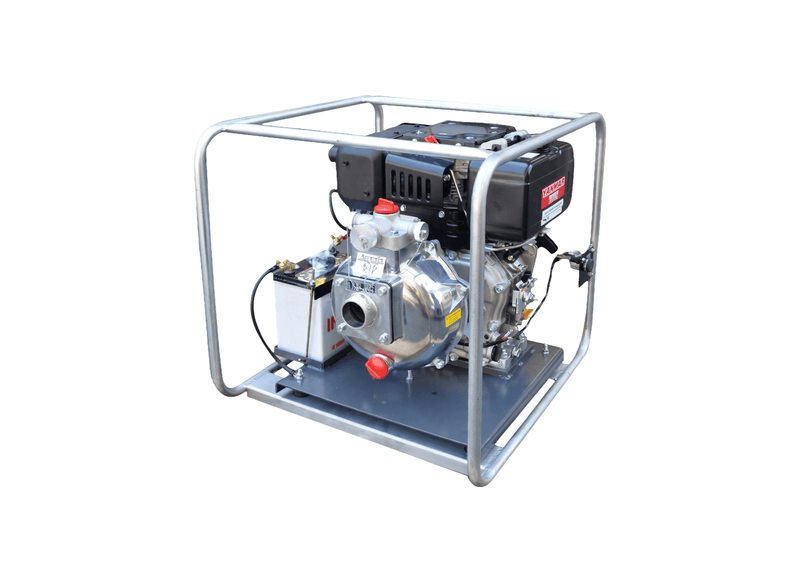

Aussie Pumps Mr T QPT205SLT/L100EL Aluminium 10HP Twin Impeller Firefighting Pump with Yanmar L100EL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Civil earthmoving crews and public utility contractors run the Aussie Mr T (QPT205SLT/L100EL) electric start diesel twin stage pump with battery lockout for construction site dust suppression and high head water relocation. A dedicated lock-out battery isolator delivers secure site compliance when parked unattended on civil job sites. The twin impeller design holds powerful discharge streams through multiple water cannon nozzles.
High elevation delivery volume achieves a maximum delivery rate of 450 L/min and develops a maximum elevation head of 90 m. Internal hydraulic architecture features a marine grade aluminium casing, twin closed aluminium impellers mounted on a single drive shaft, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 105 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine with 13L long range fuel tank (battery supplied separately) producing 10 HP. Plumbing connections incorporate 2" BSP male inlet & 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with integrated 13L fuel tank encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- Precision matched dual aluminium impellers develop high discharge heads up to 90 m.
- A 3-way outlet (2 x 1-inch and 1 x 1.5-inch) with metal caps and chains feeds multiple hose lines.
- The serviceable suction valve holds prime in the casing between jobs.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 90 m |
| Power | Yanmar L100EL Diesel Engine |
| Suitable For | High Pressure Water Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
From what vertical depth can this self priming unit draw water?
The Aussie Pumps Mr T Twin Impeller Diesel QPT205SLT L100EL (QPT205SLT/L100EL) achieves rapid self-priming from up to 7.6 m vertical suction lift, drafting water from open sources without manual line filling once charged.
What manufacturer warranty periods protect this pump and motor?
Protection for the QPT205SLT/L100EL includes a 5-year pump end warranty, 2-year Yanmar engine warranty, providing verified Australian warranty backing and technical support.
What engine powerhead and starter arrangement drive this unit?
Power for the QPT205SLT-L100EL comes from a Yanmar L100 10HP electric start diesel engine with 13L long range fuel tank, equipped with an electric key start ignition for straightforward field deployment.
What inlet size and discharge port options come equipped on this unit?
Suction intake on the QPT205SLT L100EL is provided via 50 mm BSP threading, with delivery directed through 3-way (2 x 25 mm, 1 x 40 mm) BSP fittings.
What delivery volume and vertical lift limits are specified?
Hydraulic output for the Aussie QPT205SLT/L100EL reaches up to 450 L/min in volumetric flow and up to 90 m in total head, depending on system duty.
