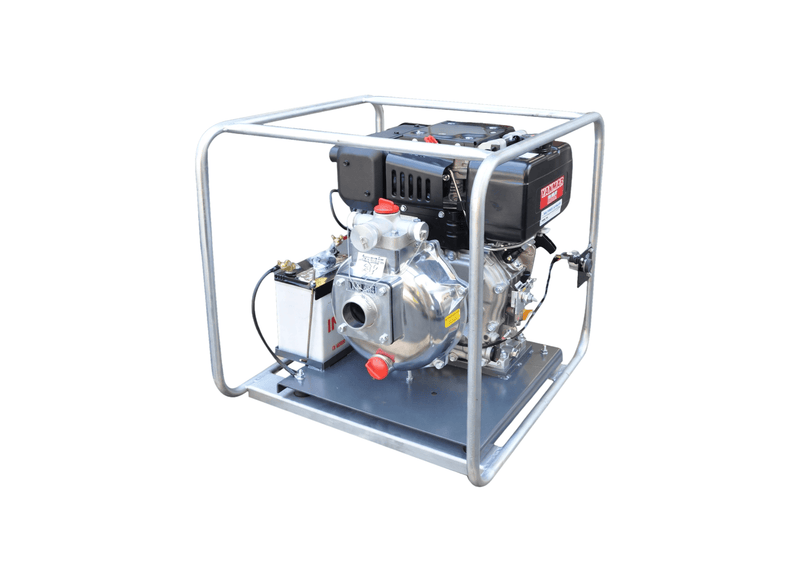

Aussie Pumps Mr T QPT205SLT/L100M Aluminium 10HP Twin Impeller Firefighting Pump with Yanmar L100M Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Open cut mining contractors and quarry superintendents operate the Aussie Mine Boss Mr T (QPT205SLT/L100M) twin impeller diesel pump for wash plant fire protection and high elevation water boosting across mining tenements. Meeting strict mine site electrical safety requirements, the pump features a heavy stainless frame, battery isolator, and emergency stop. Dual aluminium impellers deliver high head pressure to reach elevated processing platforms.
High elevation delivery volume achieves a maximum delivery rate of 450 L/min and develops a maximum elevation head of 90 m. Internal hydraulic architecture features a marine grade aluminium casing, twin closed aluminium impellers mounted on a single drive shaft, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 115 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (includes sealed gel battery) producing 10 HP. Plumbing connections incorporate 2" BSP male inlet & 3-way outlet (2 x 1", 1 x 1.5") with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Mine Boss structural stainless steel frame with center lifting bar, lockable battery isolation, E-stop & fire extinguisher encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 2-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Twin closed aluminium impellers push discharge heads up to 90 m.
- A 3-way outlet (2 x 1-inch and 1 x 1.5-inch) with metal caps and chains feeds multiple hose lines.
- The serviceable suction valve holds prime in the casing between jobs.
- Mine-spec safety package with stainless steel roll frame, lockable battery isolation switch and emergency stop button.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 450 L/Min |
| Max Head | 90 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Spray Irrigation |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are equipment warranty and Australian service support handled?
Coverage for the Aussie Pumps Mine Boss Mr T QPT205SLT L100M (QPT205SLT/L100M) includes a 5-year pump end warranty, 2-year Yanmar engine warranty, supported by certified service facilities and parts availability throughout Australia.
Which intake threading and discharge connections are provided?
The QPT205SLT/L100M is plumbed with 50 mm BSP male suction threading and 3-way (2 x 25 mm, 1 x 40 mm) BSP discharge ports, allowing fast hookup on site.
Which mine site compliance hardware and electrical isolation are installed?
Built to satisfy Australian resource site safety rules, the QPT205SLT-L100M incorporates a welded stainless steel frame, lockable battery isolation switch, and emergency stop control.
What peak volumetric water displacement and head capacity apply?
The QPT205SLT L100M achieves a maximum flow capacity of 450 L/min and a maximum head limit of 90 m, varying across operating requirements.
Which mechanical engine drive and ignition arrangement are fitted?
The Aussie QPT205SLT/L100M operates on a Yanmar L100 10HP electric start diesel engine, utilizing an electric key start ignition to drive the hydraulic pump assembly.
