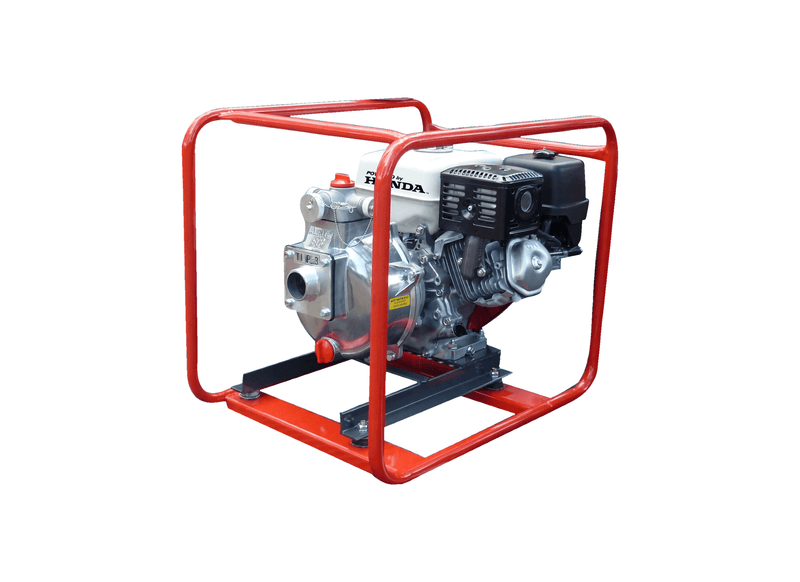

Aussie Pumps Mr T QPT305SLT/GX390 Aluminium 13HP Twin Impeller Firefighting Pump with Honda GX390 Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Timber mill operators and mountain vineyard managers select the Aussie Mr T (QPT305SLT/GX390) high volume twin impeller pump for feeding hilltop water reservoirs and supplying high-pressure yard fire hydrants. Twin staged impellers combined with enlarged suction ports push substantial water volume against steep elevation head. The heavy cast casing endures continuous high pressure without vibration distortion.
High elevation delivery volume achieves a maximum delivery rate of 500 L/min and develops a maximum elevation head of 95 m. Internal hydraulic architecture features a marine grade aluminium casing, twin closed aluminium impellers mounted on a single drive shaft, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 60 kg in dry operating trim.
Mechanical drive is provided by a Honda GX390 13HP recoil start petrol engine producing 13 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with anti-vibration mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 3-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Twin closed aluminium impellers push discharge heads up to 95 m.
- Straightforward 3-inch suction and discharge porting moves high volumes with low friction.
- The serviceable suction valve holds prime in the casing between jobs.
- A fully welded steel roll frame keeps the pump stable and easy to move between jobs.
- Aussie Pumps covers the pump end for 5 years with 3-year Honda GX engine warranty support.
SPECIFICATIONS
| Max Flow | 500 L/Min |
| Max Head | 95 m |
| Power | Honda GX390 Petrol Engine |
| Suitable For | Fire Fighting Mop Up |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the intake and discharge pipe connections laid out?
The Aussie Pumps Mr T Twin Impeller (QPT305SLT/GX390) features 80 mm BSP intake threading and 3-way (2 x 25 mm, 1 x 40 mm) BSP delivery ports for flexible pipe and hose connections.
What volumetric fluid output and vertical dynamic head apply?
The QPT305SLT/GX390 provides up to 500 L/min in water flow and up to 95 m in elevation head, with actual delivery determined by the operating point.
Which warranty terms and service agent networks support this unit?
The QPT305SLT-GX390 is covered by a 5-year pump end warranty, 3-year Honda GX engine warranty, with complete spare parts access and factory documentation available Australia-wide.
How is this unit driven and what starting mechanics are provided?
The QPT305SLT GX390 features a Honda GX390 13HP recoil start petrol engine, incorporating a manual recoil pull starter to get pumping quickly.
What vertical suction lift capability is available without line flooding?
Drawing water vertically from up to 7.6 m suction depth, the Aussie QPT305SLT/GX390 primes quickly from dams, swimming pools, creeks, and storage tanks.
