SKU: QPT305SLT/L100E

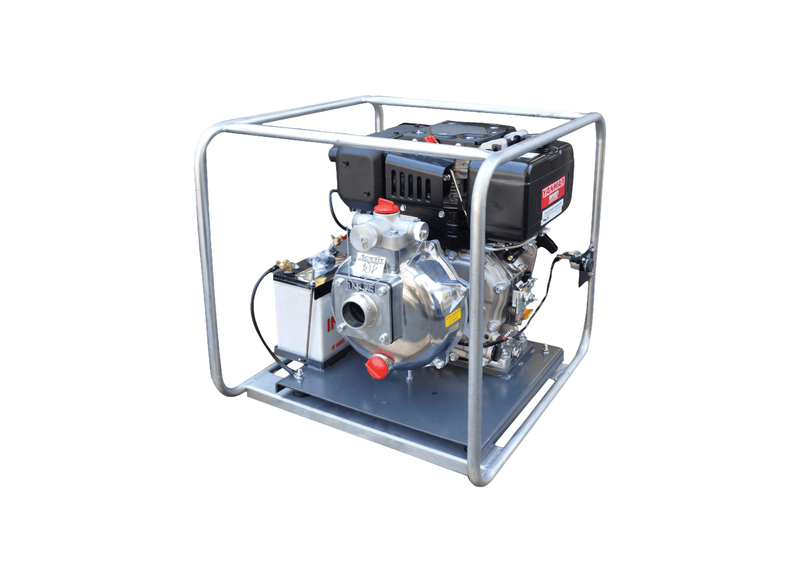

Aussie Pumps Mr T QPT305SLT/L100E Aluminium 10HP Twin Impeller Firefighting Pump with Yanmar L100E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
High country pastoralists and regional forestry trusts deploy the Aussie Mr T (QPT305SLT/L100E) electric start twin impeller diesel pump with high volume ports for heavy fire protection and pumping water up rugged escarpments into storage dams. Dual precision impellers work in series to produce high pressure while holding large fluid throughput. The fuel-efficient diesel engine delivers long run times during prolonged emergency pumping shifts.
High elevation delivery volume achieves a maximum delivery rate of 480 L/min and develops a maximum elevation head of 90 m. Internal hydraulic architecture features a marine grade aluminium casing, twin closed aluminium impellers mounted on a single drive shaft, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 100 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (battery supplied separately) producing 10 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 3-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Twin closed aluminium impellers push discharge heads up to 90 m.
- Straightforward 3-inch suction and discharge porting moves high volumes with low friction.
- The serviceable suction valve holds prime in the casing between jobs.
- A tubular steel roll frame encloses the L100E engine and pump against site impacts.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 480 L/Min |
| Max Head | 90 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Fire Fighting Mop Up |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor configuration and ignition system drive the pump?
Driven by a genuine Yanmar L100 10HP electric start diesel engine, the Aussie Pumps Mr T Twin Impeller Diesel (QPT305SLT/L100E) utilizes an electric key start ignition for reliable operation in the field.
What vertical intake lift depth is supported during self priming?
With vertical suction lift reaching up to 7.6 m, the QPT305SLT/L100E draws water directly from dams and pits once the pump casing is charged.
What maximum water delivery and discharge head are developed?
Rated for a maximum flow of 450 L/min and a maximum head of 90 m, the QPT305SLT-L100E adjusts volumetric output across its performance curve.
How is this unit covered under manufacturer warranty terms?
Equipment reliability for the QPT305SLT L100E is backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, offering nationwide service agent and spare parts support.
How are the inlet and outlet ports configured on this pump?
Fitted with a 80 mm BSP suction port and 3-way (2 x 25 mm, 1 x 40 mm) BSP discharge arrangement, the Aussie QPT305SLT/L100E connects straightforwardly to field hoses.
