SKU: QPT305SLT/L100EL

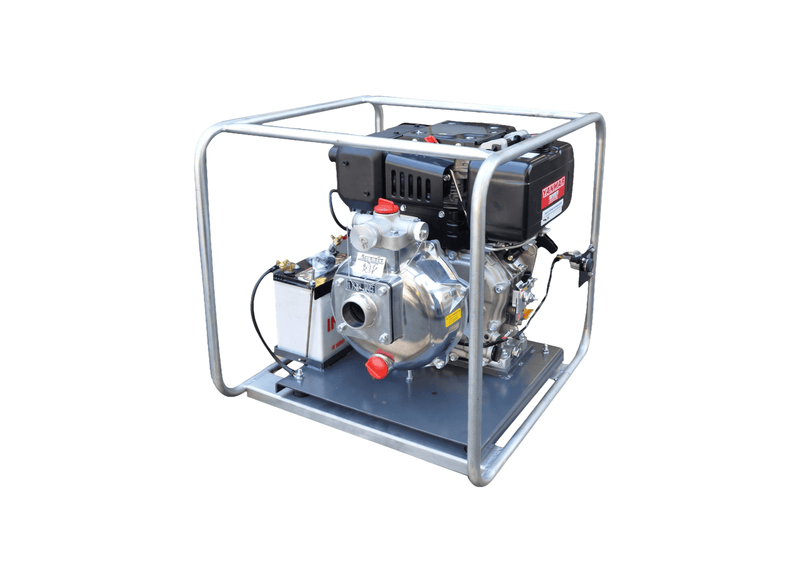

Aussie Pumps Mr T QPT305SLT/L100EL Aluminium 10HP Twin Impeller Firefighting Pump with Yanmar L100EL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Civil drainage engineers and construction contractors operate the Aussie Mr T (QPT305SLT/L100EL) electric start diesel twin stage pump with battery lockout for temporary pipeline boosting and site fire protection. The lock-out battery isolator satisfies occupational health and safety rules on civil engineering sites. Twin impellers provide substantial pressure reserves to drive water through lengthy overland delivery lines.
High elevation delivery volume achieves a maximum delivery rate of 480 L/min and develops a maximum elevation head of 90 m. Internal hydraulic architecture features a marine grade aluminium casing, twin closed aluminium impellers mounted on a single drive shaft, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 105 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine with 13L long range fuel tank (battery supplied separately) producing 10 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with metal caps & chains, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with integrated 13L fuel tank encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- Precision matched dual aluminium impellers develop high discharge heads up to 90 m.
- Full-bore 3-inch suction and discharge keep twin-impeller flow unrestricted.
- The serviceable suction valve holds prime in the casing between jobs.
- A tubular steel roll frame encloses the L100EL engine and pump against site impacts.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 480 L/Min |
| Max Head | 90 m |
| Power | Yanmar L100EL Diesel Engine |
| Suitable For | High Pressure Water Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 3-way (2 x 25 mm, 1 x 40 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What pipe connection sizes and manifold types come standard?
The Aussie Pumps Mr T Twin Impeller Diesel (QPT305SLT/L100EL) features 80 mm BSP intake threading and 3-way (2 x 25 mm, 1 x 40 mm) BSP delivery ports for flexible pipe and hose connections.
How much liquid volume and elevation pressure can this pump provide?
The QPT305SLT/L100EL provides up to 450 L/min in water flow and up to 90 m in elevation head, with actual delivery determined by the operating point.
What warranty terms and spare parts backing apply in Australia?
The QPT305SLT-L100EL is covered by a 5-year pump end warranty, 2-year Yanmar engine warranty, with complete spare parts access and factory documentation available Australia-wide.
What type of power unit and starting method are fitted?
The QPT305SLT L100EL features a Yanmar L100 10HP electric start diesel engine with 13L long range fuel tank, incorporating an electric key start ignition to get pumping quickly.
How deep can this self priming pump draw water vertically?
The Aussie QPT305SLT/L100EL achieves rapid self-priming from up to 7.6 m vertical suction lift, drafting water from open sources without manual line filling once charged.
