SKU: QPT405SLTD/D722

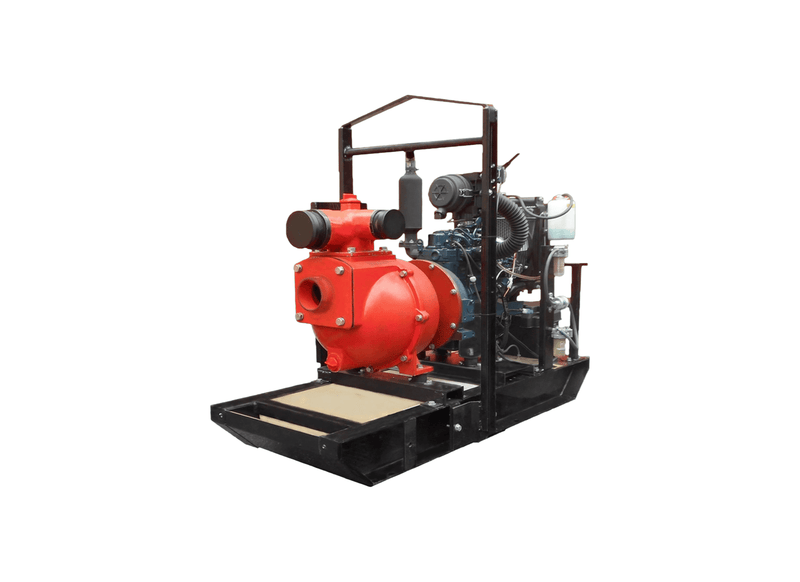

Aussie Pumps Mr T QPT405SLTD/D722 Aluminium 20HP Twin Impeller Firefighting Pump with Kubota D722 Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Commercial forestry estates, regional firefighting trusts, and industrial facilities run the Aussie Mr T (QPT405SLTD/D722) liquid-cooled multi-cylinder diesel pump for perimeter fire protection and bulk water transport across large properties. A multi-cylinder water-cooled diesel engine powers twin staged impellers to produce high pressure and vast delivery volume. The structural skid frame integrates vibration isolators to hold stability during round-the-clock pumping runs.
High elevation delivery volume achieves a maximum delivery rate of 770 L/min and develops a maximum elevation head of 95 m. Internal hydraulic architecture features a marine grade aluminium casing, twin closed aluminium impellers mounted on a single drive shaft, and twin silicon carbide mechanical seals. Total equipment mass measures 330 kg in dry operating trim.
Mechanical drive is provided by a Kubota D722 20HP water cooled electric start diesel engine with 60L fuel tank (battery supplied separately) producing 20HP (14.9kW) Diesel. Plumbing connections incorporate 4" BSP male inlet, 3-way outlet (1 x 4", 2 x 3") with heavy duty caps, and the self-priming wet end achieves 7 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Heavy duty sled mount with 60L diesel fuel tank (12 hrs running time) encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7 m.
- Precision matched dual aluminium impellers develop high discharge heads up to 95 m.
- Triple discharge porting with caps and chains feeds multiple hose lines from this 4-inch twin.
- The serviceable suction valve holds prime in the casing between jobs.
- Sled-mounted drive with integrated lifting bar simplifies site movement.
- Aussie Pumps covers the pump end for 5 years with 2-year Kubota engine warranty support.
SPECIFICATIONS
| Max Flow | 774 L/Min |
| Max Head | 95 m |
| Power | Kubota D722 Diesel Electric Start Engine |
| Suitable For | Irrigation |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 3-way (1 x 100 mm, 2 x 80 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What length of manufacturer warranty coverage protects this equipment?
Coverage for the Aussie Pumps (QPT405SLTD/D722) includes a 5-year pump end warranty, 2-year Kubota engine warranty, supported by certified service facilities and parts availability throughout Australia.
How is the plumbing connection arranged for intake and discharge lines?
The QPT405SLTD/D722 is plumbed with 100 mm BSP male suction threading and 3-way (1 x 100 mm, 2 x 80 mm) BSP discharge ports, allowing fast hookup on site.
How quickly does the pump establish prime from low water sources?
The QPT405SLTD-D722 provides self-priming capability from up to 7 m vertical suction lift, picking up prime swiftly without requiring external line priming.
What are the discharge limits for volumetric flow and total head?
The QPT405SLTD D722 achieves a maximum flow capacity of 770 L/min and a maximum head limit of 95 m, varying across operating requirements.
Which engine package and start type are installed?
The Aussie QPT405SLTD/D722 operates on a Kubota D722 20HP water cooled electric start diesel engine with 60L fuel tank, utilizing an electric key start ignition to drive the hydraulic pump assembly.
