SKU: QP203T/L48ESOL

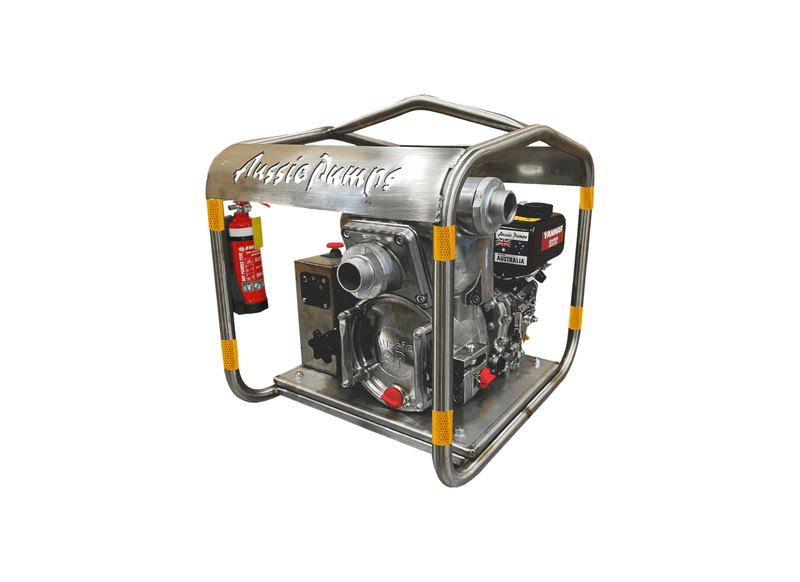

Aussie Pumps QP203T/L48ESOL Aluminium 4.8HP Trash Pump with Yanmar L48ESOL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Rural infrastructure caretakers position the Aussie Quik Prime (QP203T/L48ESOL) solenoid diesel trash pump at remote road culverts and low-lying railway underpasses prone to sudden flash flooding. A fitted fuel solenoid supports automatic start-stop control throughout long idle periods. The self-priming casing draws silt-laden water swiftly to clear flooded transport routes.
Civil dewatering capacity achieves a maximum delivery rate of 600 L/min and develops a maximum elevation head of 27 m. Internal casing clearances allow spherical solids up to 20 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 75 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 4.8 HP. Plumbing connections incorporate 2" BSP male inlet & 2" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.3 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel carry frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- Abrasive slurry meets its match in this high strength cast alloy 2-inch casing.
- A large internal liquid reservoir delivers fast self-priming from 7.3 m depth.
- Abrasion-proof ductile iron impeller clears 20 mm solids without binding.
- A quick-release front port allows rapid impeller chamber inspection without disconnecting lines.
- Silicon carbide seal faces keep muddy slurry from leaking at the shaft.
- Integrated fuel-solenoid auto control keeps this ready for push-button key starting without manual intervention.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 27 m |
| Power | Yanmar L48 Diesel Solenoid Engine |
| Suitable For | Construction Dewatering |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What debris passage diameter and cleanout access are provided?
Capable of passing up to 20 mm spherical solids, the Aussie Pumps Aussie Diesel Trash Pumps QP203T L48ESOL (QP203T/L48ESOL) includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
Which warranty terms cover the pump casing and drive engine?
Protection for the QP203T/L48ESOL includes a 5-year pump end warranty, 2-year Yanmar engine warranty, providing verified Australian warranty backing and technical support.
How is the drive engine configured and started on this unit?
Power for the QP203T-L48ESOL comes from a Yanmar L48 4.8HP electric start diesel engine with stop/start fuel solenoid, equipped with an electric key start ignition with fuel-solenoid automatic start-stop control for straightforward field deployment.
Which suction and delivery port fittings are included?
Suction intake on the QP203T L48ESOL is provided via 50 mm BSP threading, with delivery directed through 50 mm BSP fittings.
What peak flow rate and pumping head are achievable?
Hydraulic output for the Aussie QP203T/L48ESOL reaches up to 600 L/min in volumetric flow and up to 27 m in total head, depending on system duty.
