SKU: QP209/L48E

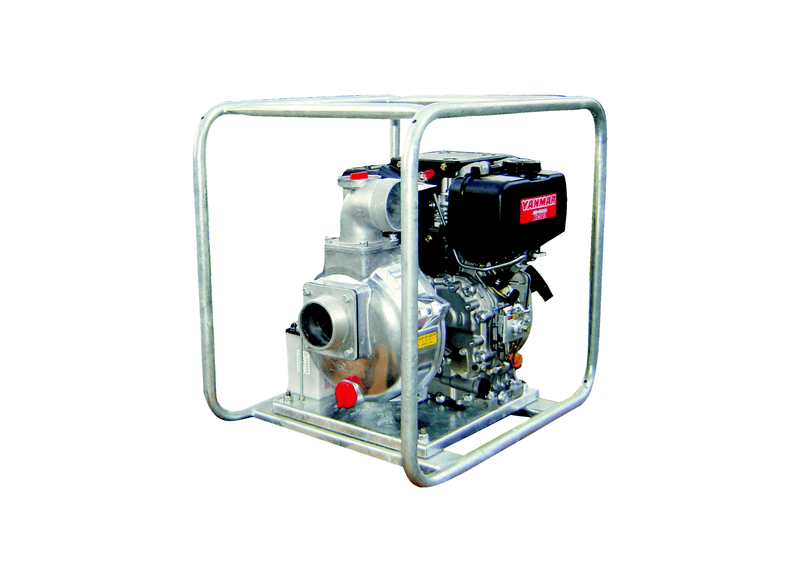

Aussie Pumps QP209/L48E Aluminium 4.8HP Gusher Pump with Yanmar L48E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Pastoral station managers and horticultural growers operate the Aussie Quik Prime (QP209/L48E) electric start diesel gusher pump for effortless water transfer between irrigation lagoons and storage tanks. Key-switch electric starting provides quick activation for farm workers without physical recoil exertion. The cast iron open impeller moves muddy surface water steadily without choking.
Bulk fluid delivery achieves a maximum delivery rate of 700 L/min and develops a maximum elevation head of 28 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 45 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP electric start diesel engine (battery supplied separately) producing 4.8 HP. Plumbing connections incorporate 2" BSP male inlet & 2" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 2-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Big open vanes shift high fluid volumes economically through 2-inch porting.
- Large diameter suction and discharge ports maximize bulk transfer rates through 2-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 700 L/Min |
| Max Head | 28 m |
| Power | Yanmar L48 Diesel Electric Start Engine |
| Suitable For | Flood Irrigation |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What flow throughput and total head elevation does this unit produce?
The Aussie Pumps Aussie Diesel Gushers QP209 L48E (QP209/L48E) delivers a maximum flow rate of 700 L/min and develops a maximum head of 28 m, depending on site operating conditions.
What drive engine and starter mechanism provide mechanical power?
Mechanical power for the QP209/L48E is supplied by a Yanmar L48 4.8HP electric start diesel engine, started via an electric key start ignition.
What port threading and discharge manifold fittings are supplied?
Plumbing connections for the QP209-L48E incorporate 50 mm BSP male intake and 50 mm BSP fittings, matching standard suction and delivery lines.
What vertical suction lift capability is available without line flooding?
Drawing water vertically from up to 7.6 m suction depth, the QP209 L48E primes quickly from dams, swimming pools, creeks, and storage tanks.
How is warranty coverage structured for the pump end and engine?
Backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, the Aussie QP209/L48E is supported by authorized service agents and genuine spare parts across Australia.
