SKU: QP209/L48ESOL

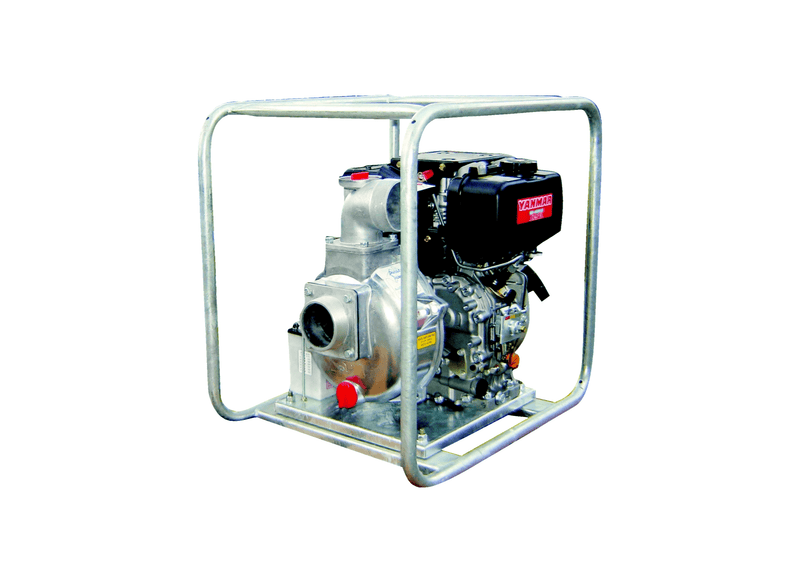

Aussie Pumps QP209/L48ESOL Aluminium 4.8HP Gusher Pump with Yanmar L48ESOL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Remote cattle station operators and conservation land managers install the Aussie Quik Prime (QP209/L48ESOL) solenoid diesel gusher pump beside distant waterholes for automated livestock watering and seasonal tank replenishment. A fitted fuel solenoid supports automatic start-stop control throughout remote station service. The big belly casing draws water steadily from natural earth dams without foot valves.
Bulk fluid delivery achieves a maximum delivery rate of 700 L/min and develops a maximum elevation head of 28 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 45 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 4.8 HP. Plumbing connections incorporate 2" BSP male inlet & 2" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.6 m.
- An open vane cast iron impeller moves 700 L/min with low diesel fuel usage.
- Big ports keep 700 L/min transfer rates flowing through 2-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- Integrated fuel-solenoid auto control keeps this ready for push-button key starting without manual intervention.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 700 L/Min |
| Max Head | 28 m |
| Power | Yanmar L48 Diesel Solenoid Engine |
| Suitable For | Construction Dewatering |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor drive and ignition setup power this water pump?
Driven by a genuine Yanmar L48 4.8HP electric start diesel engine with stop/start fuel solenoid, the Aussie Pumps Aussie Diesel Gushers QP209 L48ESOL (QP209/L48ESOL) utilizes an electric key start ignition with fuel-solenoid automatic start-stop control for reliable operation in the field.
How quickly does the pump establish prime from low water sources?
The QP209/L48ESOL provides self-priming capability from up to 7.6 m vertical suction lift, picking up prime swiftly without requiring external line priming.
What maximum pumping volume and static head does this equipment develop?
Rated for a maximum flow of 700 L/min and a maximum head of 28 m, the QP209-L48ESOL adjusts volumetric output across its performance curve.
What factory warranty backing and technical support are included?
Equipment reliability for the QP209 L48ESOL is backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, offering nationwide service agent and spare parts support.
Which pipe thread sizes and outlet options are featured?
Fitted with a 50 mm BSP suction port and 50 mm BSP discharge arrangement, the Aussie QP209/L48ESOL connects straightforwardly to field hoses.
