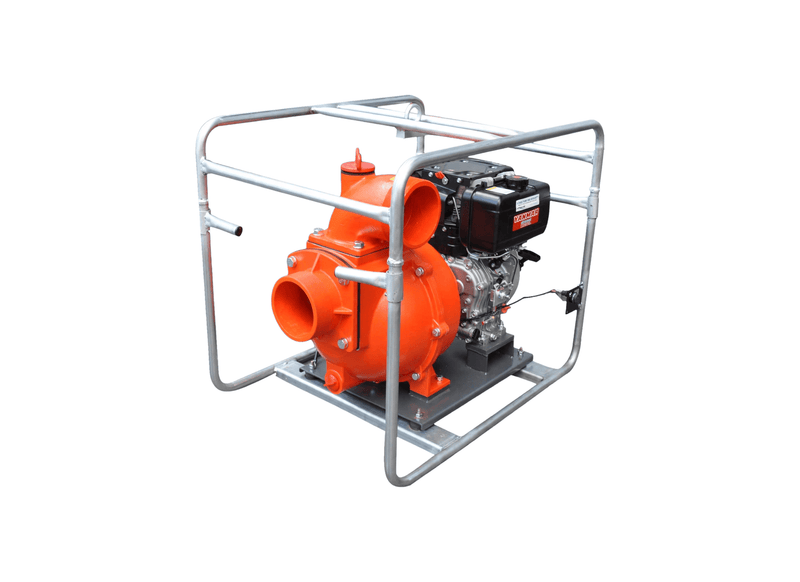

Aussie Pumps QP209/L70E/S Aluminium 7HP Gusher Pump with Yanmar L70E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Broadacre agriculturalists and civil earthmoving contractors deploy the Aussie Quik Prime (QP209/L70E/S) heavy diesel gusher pump for continuous water transfer and fast tanker loading in demanding field conditions. Extra engine power holds steady flow against moderate elevation changes and long delivery hoses. The sturdy aluminium pump body withstands prolonged field exposure across hot Australian summers.
Bulk fluid delivery achieves a maximum delivery rate of 700 L/min and develops a maximum elevation head of 28 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 70 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L70 7HP electric start diesel engine (battery supplied separately) producing 7 HP. Plumbing connections incorporate 2" BSP male inlet & 2" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 2-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Big open vanes shift high fluid volumes economically through 2-inch porting.
- Large diameter suction and discharge ports maximize bulk transfer rates through 2-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year engine cover.
SPECIFICATIONS
| Max Flow | 700 L/Min |
| Max Head | 28 m |
| Power | Yanmar L70 Diesel Electric Start Engine |
| Suitable For | High Volume Water Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the intake and discharge pipe connections laid out?
The Aussie Pumps Aussie Diesel Gushers QP209 L70E S (QP209/L70E/S) features 50 mm BSP intake threading and 50 mm BSP delivery ports for flexible pipe and hose connections.
What volumetric fluid output and vertical dynamic head apply?
The QP209/L70E/S provides up to 700 L/min in water flow and up to 28 m in elevation head, with actual delivery determined by the operating point.
Which warranty terms and service agent networks support this unit?
The QP209-L70E-S is covered by a 5-year pump end warranty, 2-year Yanmar engine warranty, with complete spare parts access and factory documentation available Australia-wide.
How is this unit driven and what starting mechanics are provided?
The QP209 L70E S features a Yanmar L70 7HP electric start diesel engine, incorporating an electric key start ignition to get pumping quickly.
What suction lift performance and priming depth are achievable?
With vertical suction lift reaching up to 7.6 m, the Aussie QP209/L70E/S draws water directly from dams and pits once the pump casing is charged.
