SKU: QP300T/L48ESOL

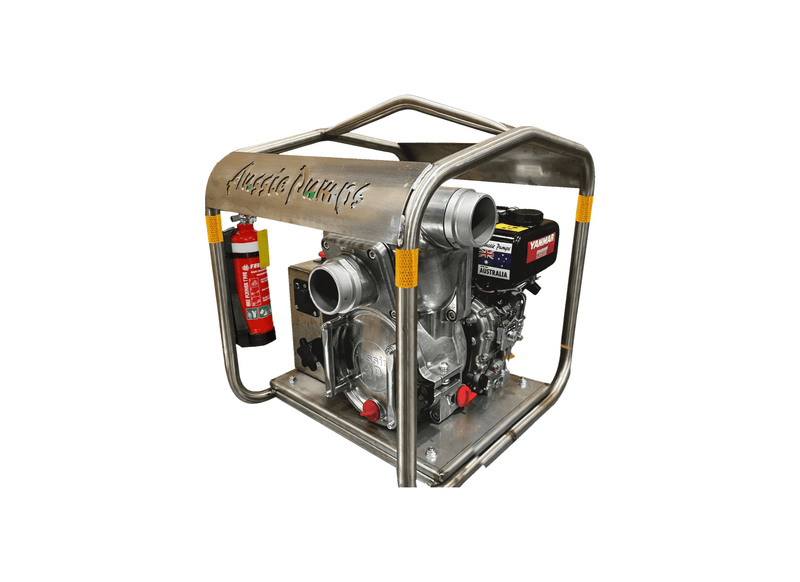

Aussie Pumps QP300T/L48ESOL Aluminium 4.8HP Trash Pump with Yanmar L48ESOL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Irrigation district managers and regional asset caretakers station the Aussie Quik Prime (QP300T/L48ESOL) solenoid diesel trash pump with three-inch ports along remote drainage channels subject to heavy seasonal stormwater runoff. The fitted fuel solenoid supports automatic start-stop control for unattended electric starting. Tough ductile iron internals pass abrasive silt and gravel without slowing water flow.
Civil dewatering capacity achieves a maximum delivery rate of 850 L/min and develops a maximum elevation head of 27 m. Internal casing clearances allow spherical solids up to 20 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 75 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 4.8 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.4 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel carry frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength casing structure stands up to abrasive slurry season after season through 3-inch porting.
- Big belly priming chamber picks up prime fast from 7.4 m.
- Tough ductile iron casting passes suspended debris up to 20 mm diameter without clogging.
- Inspect the pump impeller chamber in seconds through the quick-release front port.
- Abrasion-resistant silicon carbide seal faces stop liquid leakage in muddy slurry.
- Integrated fuel-solenoid auto control keeps this ready for push-button key starting without manual intervention.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 850 L/Min |
| Max Head | 27 m |
| Power | Yanmar L48 Diesel Solenoid Engine |
| Suitable For | Livestock Waste Disposal |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What flow throughput and total head elevation does this unit produce?
The Aussie Pumps Aussie Diesel Trash Pumps QP300T L48ESOL (QP300T/L48ESOL) delivers a maximum flow rate of 850 L/min and develops a maximum head of 27 m, depending on site operating conditions.
What drive engine and starter mechanism provide mechanical power?
Mechanical power for the QP300T/L48ESOL is supplied by a Yanmar L48 4.8HP electric start diesel engine with stop/start fuel solenoid, started via an electric key start ignition with fuel-solenoid automatic start-stop control.
What port threading and discharge manifold fittings are supplied?
Plumbing connections for the QP300T-L48ESOL incorporate 80 mm BSP male intake and 80 mm BSP fittings, matching standard suction and delivery lines.
What spherical particle size can this casing clear without binding?
Capable of passing up to 20 mm spherical solids, the QP300T L48ESOL includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
How is warranty coverage structured for the pump end and engine?
Backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, the Aussie QP300T/L48ESOL is supported by authorized service agents and genuine spare parts across Australia.
