SKU: QP301T/L100E

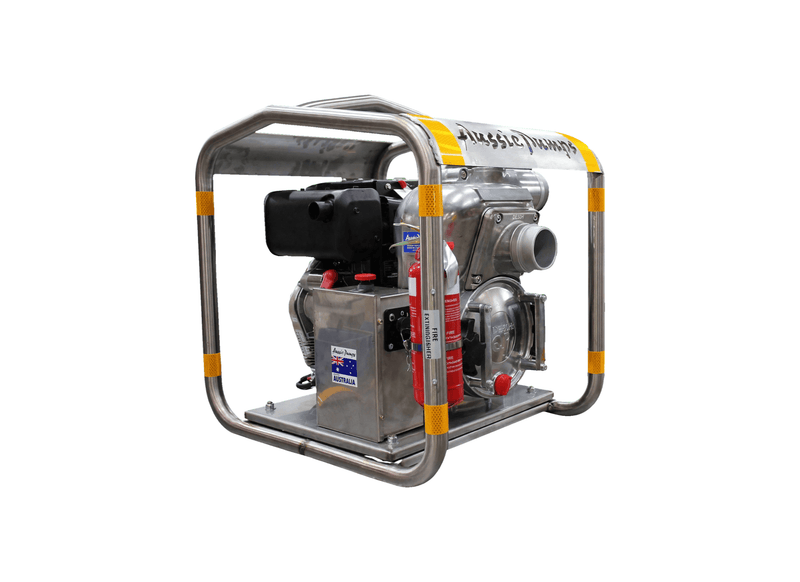

Aussie Pumps QP301T/L100E Aluminium 10HP Trash Pump with Yanmar L100E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Deep excavation contractors and tunneling teams run the Aussie Quik Prime (QP301T/L100E) heavy diesel trash pump to evacuate high volume groundwater inflows laden with coarse gravel and slurry. The high horsepower diesel engine provides plenty of torque for continuous heavy pumping shifts. Front cleanout access allows rapid chamber inspection without disturbing suction hose installations.
Civil dewatering capacity achieves a maximum delivery rate of 1200 L/min and develops a maximum elevation head of 24 m. Internal casing clearances allow spherical solids up to 25 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 118 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (battery supplied separately) producing 10 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.5 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel carry frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength casing structure stands up to abrasive slurry season after season through 3-inch porting.
- Big belly priming chamber picks up prime fast from 7.5 m.
- Tough ductile iron casting passes suspended debris up to 25 mm diameter without clogging.
- Inspect the pump impeller chamber in seconds through the quick-release front port.
- Abrasion-resistant silicon carbide seal faces stop liquid leakage in muddy slurry.
- A fully welded carry frame protects the 3-inch on rough sites.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 1200 L/Min |
| Max Head | 24 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Livestock Waste Disposal |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are equipment warranty and Australian service support handled?
Coverage for the Aussie Pumps Aussie Diesel Trash Pumps QP301T L100E (QP301T/L100E) includes a 5-year pump end warranty, 2-year Yanmar engine warranty, supported by certified service facilities and parts availability throughout Australia.
Which intake threading and discharge connections are provided?
The QP301T/L100E is plumbed with 80 mm BSP male suction threading and 80 mm BSP discharge ports, allowing fast hookup on site.
How are suspended solids and muddy slurry handled during excavation dewatering?
Capable of passing up to 25 mm spherical solids, the QP301T-L100E includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
What peak volumetric water displacement and head capacity apply?
The QP301T L100E achieves a maximum flow capacity of 1200 L/min and a maximum head limit of 24 m, varying across operating requirements.
Which mechanical engine drive and ignition arrangement are fitted?
The Aussie QP301T/L100E operates on a Yanmar L100 10HP electric start diesel engine, utilizing an electric key start ignition to drive the hydraulic pump assembly.
