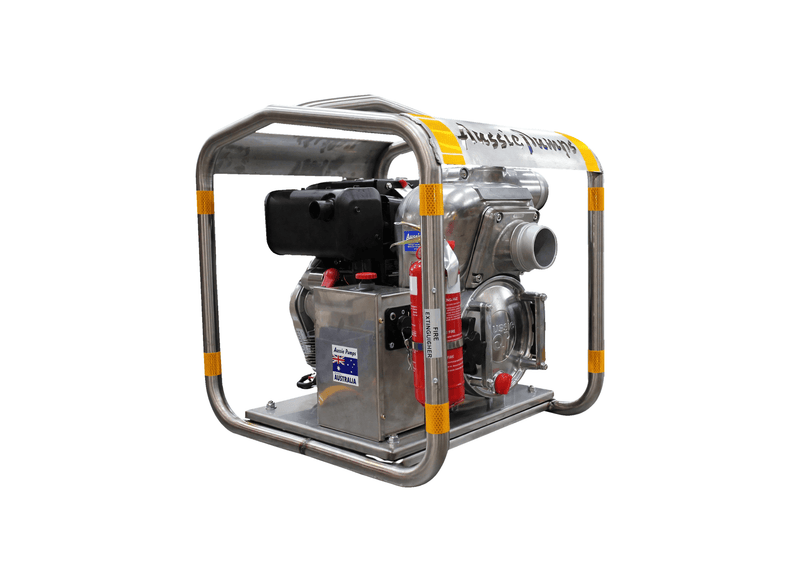

Aussie Pumps QP301T/L100ESOL Aluminium 10HP Trash Pump with Yanmar L100ESOL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Remote civil project managers position the Aussie Quik Prime (QP301T/L100ESOL) solenoid diesel trash pump with heavy diesel engine near unmonitored retention lagoons and agricultural runoff ponds. A fitted fuel solenoid keeps the pump ready for automatic start-stop emergency dewatering runs. The cast pump casing and ductile iron impeller resist wear from suspended solids.
Civil dewatering capacity achieves a maximum delivery rate of 1200 L/min and develops a maximum elevation head of 24 m. Total equipment mass is 118 kg in standard operating trim. Internal casing clearances allow spherical solids up to 25 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 10 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.5 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel carry frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength cast alloy casing lets this 3-inch stand up to abrasive slurry pumping.
- Big belly priming chamber picks up prime fast from 7.5 m.
- Tough ductile iron casting passes suspended debris up to 25 mm diameter without clogging.
- Inspect the pump impeller chamber in seconds through the quick-release front port.
- Abrasion-resistant silicon carbide seal faces stop liquid leakage in muddy slurry.
- Integrated fuel-solenoid auto control keeps this ready for push-button key starting without manual intervention.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1200 L/Min |
| Max Head | 24 m |
| Power | Yanmar L100 Diesel Solenoid Engine |
| Suitable For | Mine Waste Pump Out |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What volumetric flow capacity and vertical elevation apply to this unit?
The Aussie Pumps Aussie Diesel Trash Pumps QP301T L100ESOL (QP301T/L100ESOL) delivers a maximum flow rate of 1200 L/min and develops a maximum head of 24 m, depending on site operating conditions.
What engine drive and starting mechanism power this assembly?
Mechanical power for the QP301T/L100ESOL is supplied by a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid, started via an electric key start ignition with fuel-solenoid automatic start-stop control.
What plumbing connections and discharge port arrangements are fitted?
Plumbing connections for the QP301T-L100ESOL incorporate 80 mm BSP male intake and 80 mm BSP fittings, matching standard suction and delivery lines.
What debris passage diameter and cleanout access are provided?
Capable of passing up to 25 mm spherical solids, the QP301T L100ESOL includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
What factory warranty protection and service support are provided?
Backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, the Aussie QP301T/L100ESOL is supported by authorized service agents and genuine spare parts across Australia.
