SKU: QP303/L48ESOL

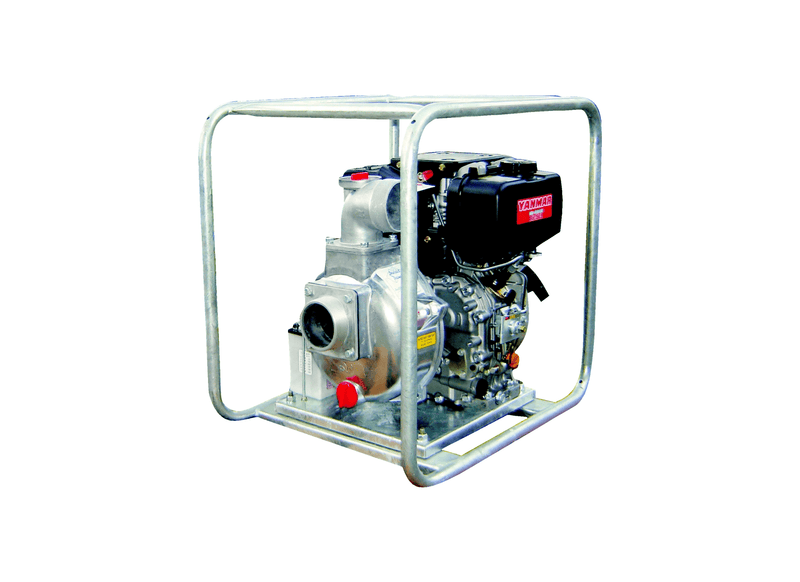

Aussie Pumps QP303/L48ESOL Aluminium 4.8HP Gusher Pump with Yanmar L48ESOL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Remote agricultural holdings and pastoral outstations station the Aussie Quik Prime (QP303/L48ESOL) solenoid diesel gusher pump with wide ports beside unattended bore dams for regular bulk water movement to livestock storage points. The fitted fuel solenoid supports automatic start-stop control to deliver instant push-button starting. A large priming chamber draws water swiftly from low-lying channels without manual priming.
Bulk fluid delivery achieves a maximum delivery rate of 1000 L/min and develops a maximum elevation head of 30 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 45 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L48 4.8HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 4.8 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 3-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Big open vanes shift high fluid volumes economically through 3-inch porting.
- Large diameter suction and discharge ports maximize bulk transfer rates through 3-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Integrated fuel-solenoid auto control keeps this ready for push-button key starting without manual intervention.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1000 L/Min |
| Max Head | 30 m |
| Power | Yanmar L48 Diesel Solenoid Engine |
| Suitable For | Flood Irrigation |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are equipment warranty and Australian service support handled?
Coverage for the Aussie Pumps Aussie Diesel Gushers QP303 L48ESOL (QP303/L48ESOL) includes a 5-year pump end warranty, 2-year Yanmar engine warranty, supported by certified service facilities and parts availability throughout Australia.
Which intake threading and discharge connections are provided?
The QP303/L48ESOL is plumbed with 80 mm BSP male suction threading and 80 mm BSP discharge ports, allowing fast hookup on site.
What vertical suction capability applies for open water drafting?
Drawing water vertically from up to 7.6 m suction depth, the QP303-L48ESOL primes quickly from dams, swimming pools, creeks, and storage tanks.
What peak volumetric water displacement and head capacity apply?
The QP303 L48ESOL achieves a maximum flow capacity of 1000 L/min and a maximum head limit of 30 m, varying across operating requirements.
Which mechanical engine drive and ignition arrangement are fitted?
The Aussie QP303/L48ESOL operates on a Yanmar L48 4.8HP electric start diesel engine with stop/start fuel solenoid, utilizing an electric key start ignition with fuel-solenoid automatic start-stop control to drive the hydraulic pump assembly.
