SKU: QP303/L70ESOL

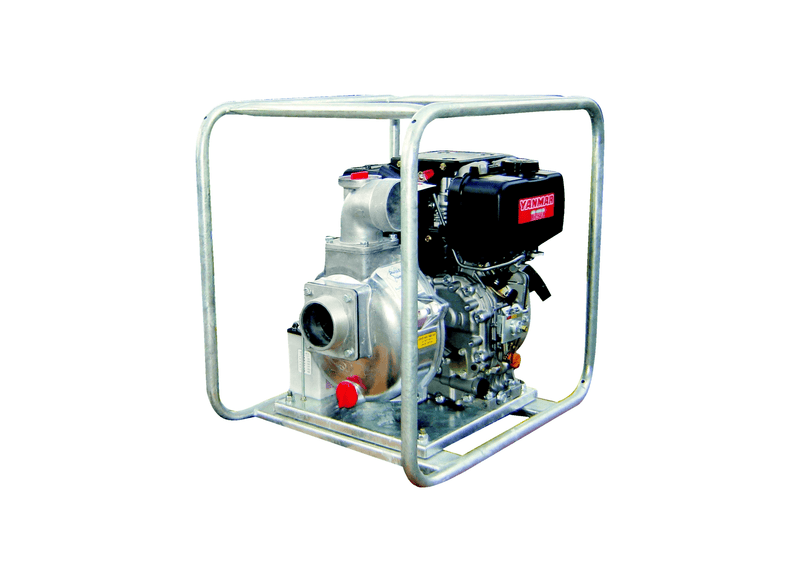

Aussie Pumps QP303/L70ESOL Aluminium 7HP Gusher Pump with Yanmar L70ESOL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Station managers and regional irrigation groups position the Aussie Quik Prime (QP303/L70ESOL) solenoid diesel gusher pump with wide ports at remote river intake structures for unattended stock water transfers and channel distribution. The fitted fuel solenoid supports automatic start-stop control throughout long idle stretches between pumping cycles. Cast iron internals resist wear from abrasive river silt and suspended soil particles.
Bulk fluid delivery achieves a maximum delivery rate of 1000 L/min and develops a maximum elevation head of 30 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 70 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L70 7HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 7 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 3-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Big open vanes shift high fluid volumes economically through 3-inch porting.
- Large diameter suction and discharge ports maximize bulk transfer rates through 3-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Integrated fuel-solenoid auto control keeps this ready for push-button key starting without manual intervention.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1000 L/Min |
| Max Head | 30 m |
| Power | Yanmar L70 Diesel Solenoid Engine |
| Suitable For | High Volume Water Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor configuration and ignition system drive the pump?
Driven by a genuine Yanmar L70 7HP electric start diesel engine with stop/start fuel solenoid, the Aussie Pumps Aussie Diesel Gushers QP303 L70ESOL (QP303/L70ESOL) utilizes an electric key start ignition with fuel-solenoid automatic start-stop control for reliable operation in the field.
What vertical intake lift depth is supported during self priming?
With vertical suction lift reaching up to 7.6 m, the QP303/L70ESOL draws water directly from dams and pits once the pump casing is charged.
What maximum water delivery and discharge head are developed?
Rated for a maximum flow of 1000 L/min and a maximum head of 30 m, the QP303-L70ESOL adjusts volumetric output across its performance curve.
How is this unit covered under manufacturer warranty terms?
Equipment reliability for the QP303 L70ESOL is backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, offering nationwide service agent and spare parts support.
How are the inlet and outlet ports configured on this pump?
Fitted with a 80 mm BSP suction port and 80 mm BSP discharge arrangement, the Aussie QP303/L70ESOL connects straightforwardly to field hoses.
