SKU: QP310/L100ESOL

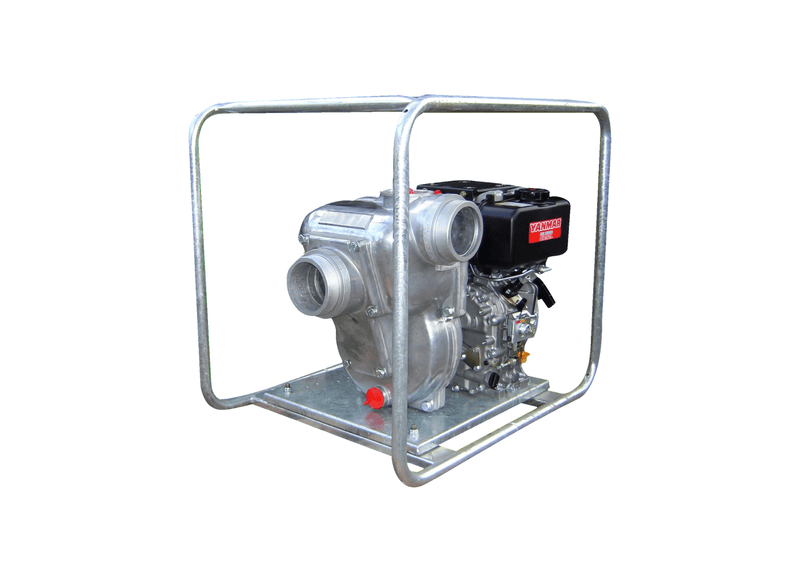

Aussie Pumps QP310/L100ESOL Aluminium 10HP Gusher Pump with Yanmar L100ESOL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Remote pastoral stations and outback road maintenance teams install the Aussie Quik Prime (QP310/L100ESOL) solenoid diesel high flow gusher pump at remote bore dams for unattended water transfer into livestock tanks. The fitted fuel solenoid supports automatic start-stop control for steadfast push-button starting. Large diameter ports allow high volume fluid delivery with minimal friction losses.
Bulk fluid delivery achieves a maximum delivery rate of 1300 L/min and develops a maximum elevation head of 30 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 105 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 10 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet, and the self-priming wet end achieves 8.2 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 3-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 8.2 m depth.
- Big open vanes shift high fluid volumes economically through 3-inch porting.
- Big ports keep 1300 L/min transfer rates flowing through 3-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Integrated fuel-solenoid auto control keeps this ready for push-button key starting without manual intervention.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1300 L/Min |
| Max Head | 30 m |
| Power | Yanmar L100 Diesel Solenoid Engine |
| Suitable For | Tanker Fill |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What vertical suction lift capability is available without line flooding?
Drawing water vertically from up to 7.6 m suction depth, the Aussie Pumps Aussie Diesel Gushers QP310 L100ESOL (QP310/L100ESOL) primes quickly from dams, swimming pools, creeks, and storage tanks.
Which warranty terms cover the pump casing and drive engine?
Protection for the QP310/L100ESOL includes a 5-year pump end warranty, 2-year Yanmar engine warranty, providing verified Australian warranty backing and technical support.
How is the drive engine configured and started on this unit?
Power for the QP310-L100ESOL comes from a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid, equipped with an electric key start ignition with fuel-solenoid automatic start-stop control for straightforward field deployment.
Which suction and delivery port fittings are included?
Suction intake on the QP310 L100ESOL is provided via 80 mm BSP threading, with delivery directed through 80 mm BSP fittings.
What peak flow rate and pumping head are achievable?
Hydraulic output for the Aussie QP310/L100ESOL reaches up to 1300 L/min in volumetric flow and up to 30 m in total head, depending on system duty.
