SKU: QP402/GX390E

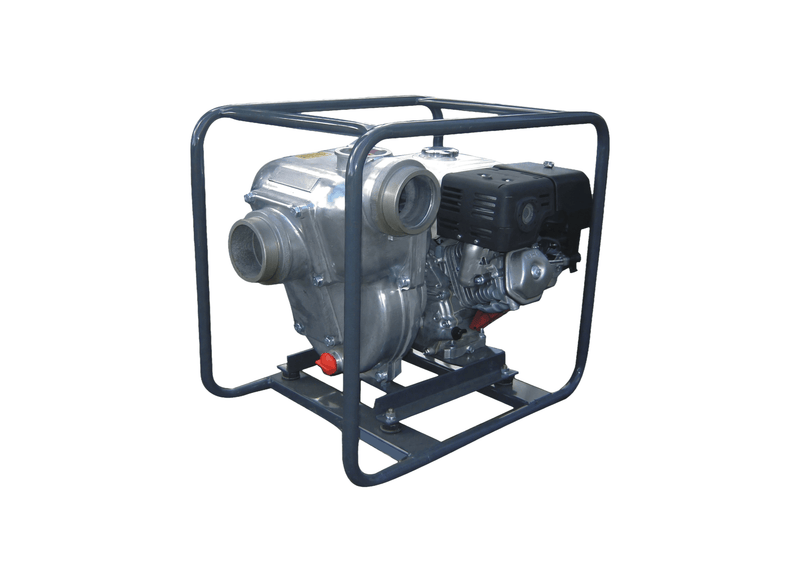

Aussie Pumps QP402/GX390E Aluminium 13HP Gusher Pump with Honda GX390E Petrol Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Civil infrastructure contractors and commercial aquaculture operators deploy the Aussie Quik Prime (QP402/GX390E) electric start high capacity gusher pump for filling bulk water tankers, pond cycling, and emergency storm runoff control. Electric key starting simplifies daily operation when loading multiple water trucks throughout the workday. Wide hydraulic passages allow high liquid volumes to flow freely without restriction.
Bulk fluid delivery achieves a maximum delivery rate of 1800 L/min and develops a maximum elevation head of 30 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 100 kg in dry operating trim.
Mechanical drive is provided by a Honda GX390 13HP electric start petrol engine (battery supplied separately) producing 13 HP. Plumbing connections incorporate 4" BSP male inlet & 4" BSP male outlet, and the self-priming wet end achieves 8.2 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 4-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 8.2 m depth.
- Big open vanes shift high fluid volumes economically through 4-inch porting.
- Large diameter suction and discharge ports maximize bulk transfer rates through 4-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Backed by a 5-year pump end warranty from Aussie Pumps with 3-year Honda GX engine cover.
SPECIFICATIONS
| Max Flow | 1800 L/Min |
| Max Head | 30 m |
| Power | Honda GX390 Petrol Electric Start Engine |
| Suitable For | Construction Dewatering |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor configuration and ignition system drive the pump?
Driven by a genuine Honda GX390 13HP electric start petrol engine, the Aussie Pumps Aussie Petrol Gushers QP402 GX390E (QP402/GX390E) utilizes an electric key start ignition for reliable operation in the field.
What vertical suction capability applies for open water drafting?
Drawing water vertically from up to 7.6 m suction depth, the QP402/GX390E primes quickly from dams, swimming pools, creeks, and storage tanks.
What maximum water delivery and discharge head are developed?
Rated for a maximum flow of 1800 L/min and a maximum head of 30 m, the QP402-GX390E adjusts volumetric output across its performance curve.
How is this unit covered under manufacturer warranty terms?
Equipment reliability for the QP402 GX390E is backed by a 5-year pump end warranty, 3-year Honda GX engine warranty, offering nationwide service agent and spare parts support.
How are the inlet and outlet ports configured on this pump?
Fitted with a 100 mm BSP suction port and 100 mm BSP discharge arrangement, the Aussie QP402/GX390E connects straightforwardly to field hoses.
