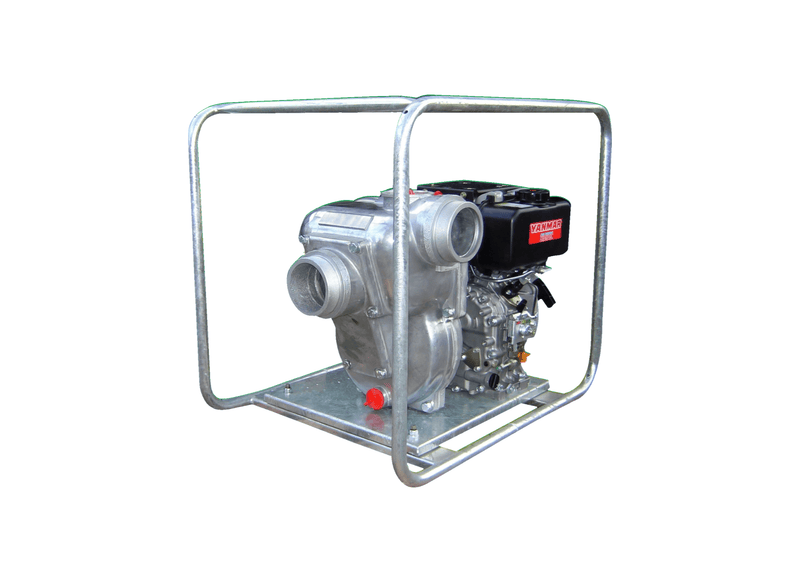

Aussie Pumps QP402/L100E Aluminium 10HP Gusher Pump with Yanmar L100E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Civil engineering contractors and flood mitigation teams run the Aussie Quik Prime (QP402/L100E) electric start diesel high capacity gusher pump for stormwater evacuation and high volume water cart filling on civil works. The diesel engine holds high hydraulic throughput against working line resistance. A sturdy steel frame protects engine and pump assemblies during rough jobsite transport.
Bulk fluid delivery achieves a maximum delivery rate of 1600 L/min and develops a maximum elevation head of 30 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 105 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (battery supplied separately) producing 10 HP. Plumbing connections incorporate 4" BSP male inlet & 4" BSP male outlet, and the self-priming wet end achieves 8.2 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 8.2 m.
- An open vane cast iron impeller moves 1600 L/min with low diesel fuel usage.
- Big ports keep 1600 L/min transfer rates flowing through 4-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1600 L/Min |
| Max Head | 30 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Tanker Fill |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor drive and ignition setup power this water pump?
Driven by a genuine Yanmar L100 10HP electric start diesel engine, the Aussie Pumps Aussie Diesel Gushers QP402 L100E (QP402/L100E) utilizes an electric key start ignition for reliable operation in the field.
From what vertical depth can this self priming unit draw water?
The QP402/L100E achieves rapid self-priming from up to 7.6 m vertical suction lift, drafting water from open sources without manual line filling once charged.
What maximum pumping volume and static head does this equipment develop?
Rated for a maximum flow of 1600 L/min and a maximum head of 30 m, the QP402-L100E adjusts volumetric output across its performance curve.
What factory warranty backing and technical support are included?
Equipment reliability for the QP402 L100E is backed by a 5-year pump end warranty, 2-year Yanmar engine warranty, offering nationwide service agent and spare parts support.
Which pipe thread sizes and outlet options are featured?
Fitted with a 100 mm BSP suction port and 100 mm BSP discharge arrangement, the Aussie QP402/L100E connects straightforwardly to field hoses.
