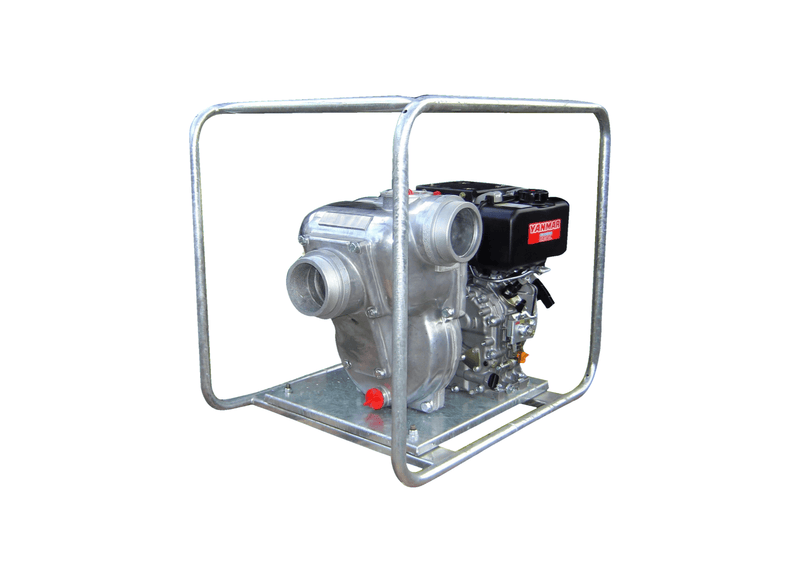

Aussie Pumps QP402/L100ESOL Aluminium 10HP Gusher Pump with Yanmar L100ESOL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Remote station owners and regional water boards station the Aussie Quik Prime (QP402/L100ESOL) solenoid diesel high capacity gusher pump at distant flood gates and storage dams for unattended seasonal water relocation. A fitted fuel solenoid keeps the pump ready for automatic start-stop operation in remote locations. Wide suction and discharge openings deliver rapid volumetric fluid transfer.
Bulk fluid delivery achieves a maximum delivery rate of 1600 L/min and develops a maximum elevation head of 30 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 105 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid (battery supplied separately) producing 10 HP. Plumbing connections incorporate 4" BSP male inlet & 4" BSP male outlet, and the self-priming wet end achieves 8.2 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 4-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 8.2 m depth.
- Big open vanes shift high fluid volumes economically through 4-inch porting.
- Large diameter suction and discharge ports maximize bulk transfer rates through 4-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Integrated fuel-solenoid auto control keeps this ready for push-button key starting without manual intervention.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1600 L/Min |
| Max Head | 30 m |
| Power | Yanmar L100 Diesel Solenoid Engine |
| Suitable For | Flood Irrigation |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the intake and discharge pipe connections laid out?
The Aussie Pumps Aussie Diesel Gushers QP402 L100ESOL (QP402/L100ESOL) features 100 mm BSP intake threading and 100 mm BSP delivery ports for flexible pipe and hose connections.
What volumetric fluid output and vertical dynamic head apply?
The QP402/L100ESOL provides up to 1600 L/min in water flow and up to 30 m in elevation head, with actual delivery determined by the operating point.
Which warranty terms and service agent networks support this unit?
The QP402-L100ESOL is covered by a 5-year pump end warranty, 2-year Yanmar engine warranty, with complete spare parts access and factory documentation available Australia-wide.
How is this unit driven and what starting mechanics are provided?
The QP402 L100ESOL features a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid, incorporating an electric key start ignition with fuel-solenoid automatic start-stop control to get pumping quickly.
What vertical suction capability applies for open water drafting?
Drawing water vertically from up to 7.6 m suction depth, the Aussie QP402/L100ESOL primes quickly from dams, swimming pools, creeks, and storage tanks.
