SKU: QP40T/L100ESS

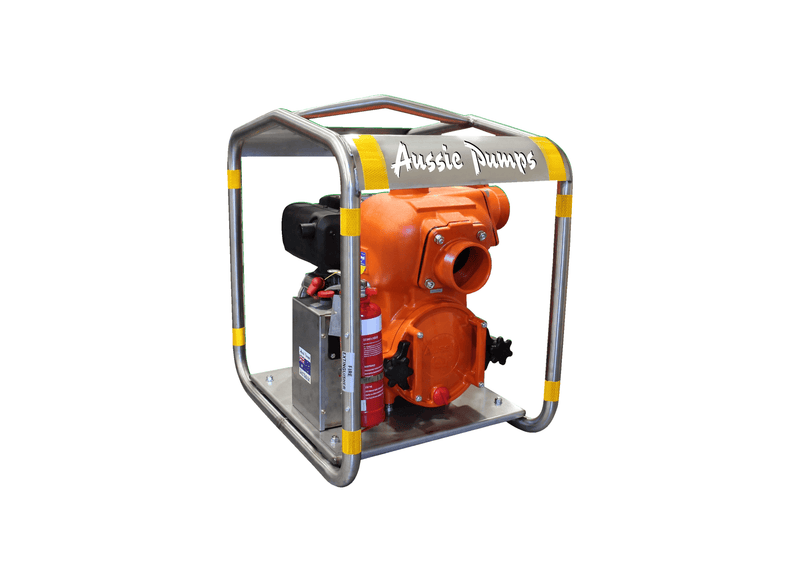

Aussie Pumps QP40T/L100ESS Aluminium 10HP Trash Pump with Yanmar L100ESS Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Stormwater asset managers station the Aussie Quik Prime (QP40T/L100ESS) diesel trash pump with four-inch ports at municipal retention basins and flood control dams for automated water level reduction. The unit stands ready for dependable operation. Voluminous casing passages pass floating and suspended debris without restricting fluid throughput.
Civil dewatering capacity achieves a maximum delivery rate of 1600 L/min and develops a maximum elevation head of 24 m. Internal casing clearances allow spherical solids up to 38 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 133 kg in standard operating trim.
Mechanical drive is provided by a Yanmar L100 10HP diesel engine producing 10 HP. Plumbing connections incorporate 4" BSP male inlet & 4" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Fully welded steel carry frame encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength cast alloy casing lets this 4-inch stand up to abrasive slurry pumping.
- Big belly priming chamber picks up prime fast from 7.6 m.
- Tough ductile iron casting passes suspended debris up to 38 mm diameter without clogging.
- Inspect the pump impeller chamber in seconds through the quick-release front port.
- Abrasion-resistant silicon carbide seal faces stop liquid leakage in muddy slurry.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 1600 L/Min |
| Max Head | 24 m |
| Power | Yanmar L100ESS Diesel Engine |
| Suitable For | Waste Water Handling |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 100 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What pipe connection sizes and manifold types come standard?
The Aussie Pumps Aussie Diesel Trash Pumps QP40T L100ESS (QP40T/L100ESS) features 100 mm BSP intake threading and 100 mm BSP delivery ports for flexible pipe and hose connections.
How much liquid volume and elevation pressure can this pump provide?
The QP40T/L100ESS provides up to 1600 L/min in water flow and up to 24 m in elevation head, with actual delivery determined by the operating point.
What warranty terms and spare parts backing apply in Australia?
The QP40T-L100ESS is covered by a 5-year pump end warranty, 2-year Yanmar engine warranty, with complete spare parts access and factory documentation available Australia-wide.
What type of power unit and starting method are fitted?
The QP40T L100ESS features a Yanmar L100 10HP electric start diesel engine with stop/start fuel solenoid, incorporating an electric key start ignition to get pumping quickly.
What spherical particle size can this casing clear without binding?
Capable of passing up to 38 mm spherical solids, the Aussie QP40T/L100ESS includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
