SKU: QP602/L100E

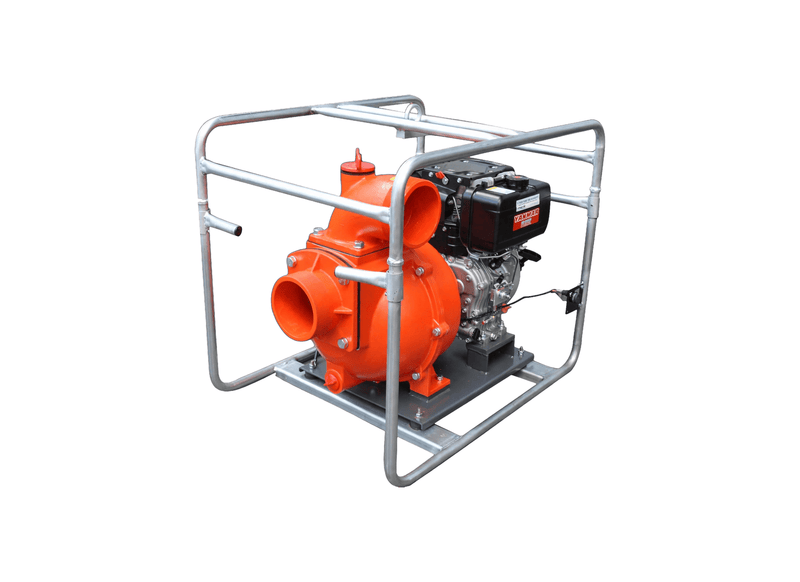

Aussie Pumps QP602/L100E Aluminium 10HP Gusher Pump with Yanmar L100E Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Agricultural drainage trusts and civil infrastructure contractors commission the Aussie Quik Prime (QP602/L100E) six-inch diesel gusher pump for bulk water movement, flood relief, and dewatering extensive civil swales. Wide hydraulic plumbing allows vast volumes of water to pass through the casing with minimal restriction. Electric key start ignition provides swift activation during emergency flood relief situations.
Bulk fluid delivery achieves a maximum delivery rate of 2500 L/min and develops a maximum elevation head of 18 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 160 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine (battery supplied separately) producing 10 HP. Plumbing connections incorporate 6" BSP male inlet & 6" BSP male outlet, and the self-priming wet end achieves 7.4 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.4 m.
- An open vane cast iron impeller moves 2500 L/min with low diesel fuel usage.
- Large diameter suction and discharge ports maximize bulk transfer rates through 6-inch porting.
- The serviceable suction valve holds prime in the casing between jobs.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Aussie Pumps covers the pump end for 5 years with 2-year Yanmar engine warranty support.
SPECIFICATIONS
| Max Flow | 2500 L/Min |
| Max Head | 18 m |
| Power | Yanmar L100 Diesel Electric Start Engine |
| Suitable For | Construction Dewatering |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How deep can this unit prime liquid from open water sources?
The Aussie Pumps Aussie Diesel Gushers QP602 L100E (QP602/L100E) provides self-priming capability from up to 7.6 m vertical suction lift, picking up prime swiftly without requiring external line priming.
What manufacturer warranty periods protect this pump and motor?
Protection for the QP602/L100E includes a 5-year pump end warranty, 2-year Yanmar engine warranty, providing verified Australian warranty backing and technical support.
What engine powerhead and starter arrangement drive this unit?
Power for the QP602-L100E comes from a Yanmar L100 10HP electric start diesel engine, equipped with an electric key start ignition for straightforward field deployment.
What inlet size and discharge port options come equipped on this unit?
Suction intake on the QP602 L100E is provided via 150 mm BSP threading, with delivery directed through 150 mm BSP fittings.
What delivery volume and vertical lift limits are specified?
Hydraulic output for the Aussie QP602/L100E reaches up to 2500 L/min in volumetric flow and up to 18 m in total head, depending on system duty.
