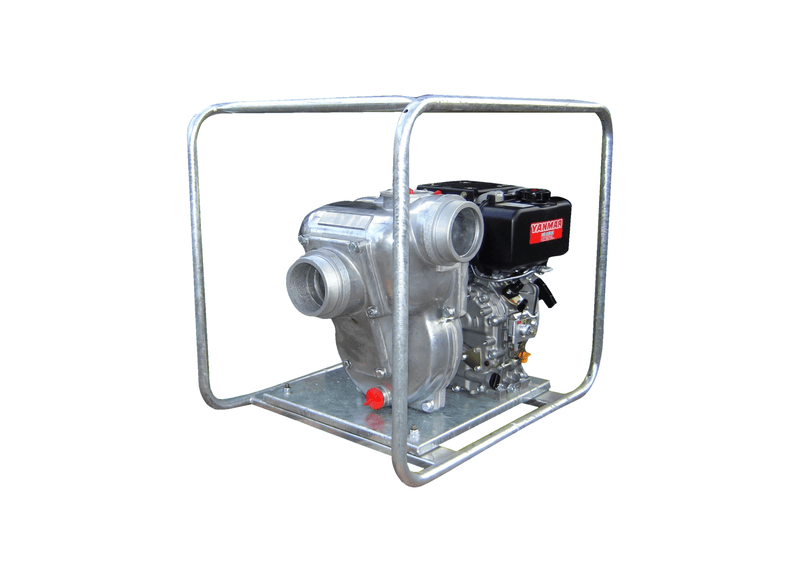

Aussie Pumps QP602/L100EL Aluminium 10HP Gusher Pump with Yanmar L100EL Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Civil site drainage teams and emergency flood mitigation crews deploy the Aussie Quik Prime (QP602/L100EL) long-range diesel gusher pump for continuous day-and-night bulk water evacuation across large inundated work areas. An enlarged long-range fuel tank allows extended unattended pumping runs without interruption. The protective roll frame enables safe crane lifting and secure transport on low-loader trailers.
Bulk fluid delivery achieves a maximum delivery rate of 2500 L/min and develops a maximum elevation head of 18 m. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 165 kg in dry operating trim.
Mechanical drive is provided by a Yanmar L100 10HP electric start diesel engine with 13L long range fuel tank (battery supplied separately) producing 10 HP. Plumbing connections incorporate 6" BSP male inlet & 6" BSP male outlet, and the self-priming wet end achieves 7.4 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel roll frame with integrated 13L fuel tank encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 6-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.4 m depth.
- Big open vanes shift high fluid volumes economically through 6-inch porting.
- Big ports keep 2500 L/min transfer rates flowing through 6-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Backed by a 5-year pump end warranty from Aussie Pumps with 2-year Yanmar engine cover.
SPECIFICATIONS
| Max Flow | 2500 L/Min |
| Max Head | 18 m |
| Power | Yanmar L100EL Diesel Electric Start Engine |
| Suitable For | High Volume Water Transfer |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are equipment warranty and Australian service support handled?
Coverage for the Aussie Pumps Aussie Diesel Gushers QP602 L100EL (QP602/L100EL) includes a 5-year pump end warranty, 2-year Yanmar engine warranty, supported by certified service facilities and parts availability throughout Australia.
Which intake threading and discharge connections are provided?
The QP602/L100EL is plumbed with 150 mm BSP male suction threading and 150 mm BSP discharge ports, allowing fast hookup on site.
What vertical intake lift depth is supported during self priming?
With vertical suction lift reaching up to 7.6 m, the QP602-L100EL draws water directly from dams and pits once the pump casing is charged.
What peak volumetric water displacement and head capacity apply?
The QP602 L100EL achieves a maximum flow capacity of 2500 L/min and a maximum head limit of 18 m, varying across operating requirements.
Which mechanical engine drive and ignition arrangement are fitted?
The Aussie QP602/L100EL operates on a Yanmar L100 10HP electric start diesel engine with 13L long range fuel tank, utilizing an electric key start ignition to drive the hydraulic pump assembly.
