SKU: QP-60TD/D1105

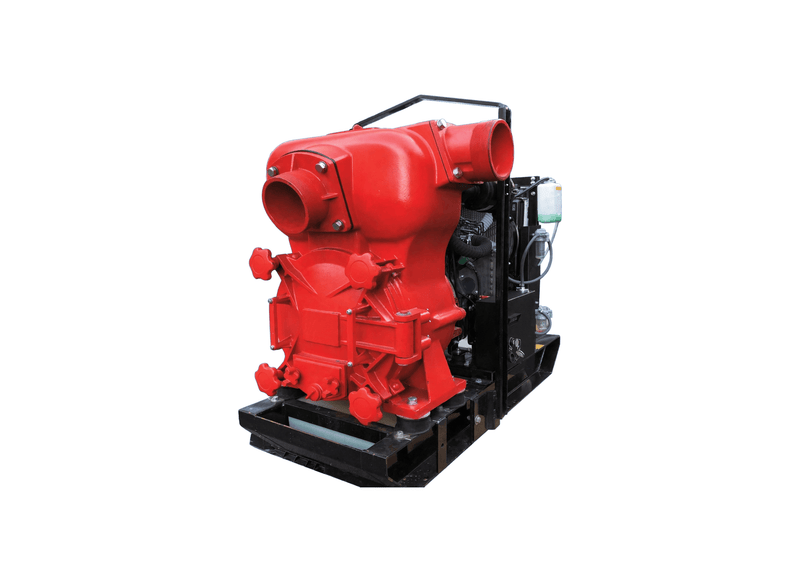

Aussie Pumps QP60TD QP-60TD/D1105 Cast Iron 24.8HP Skid Mount Trash Pump with Kubota Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Solids-contaminated wastewater can be handled at high-volume flows with this heavy diesel trash-pump setup for severe dewatering, tailings dam pump-out, and flood mitigation. Steel skid mounting with a central lifting bar allows crane site movement. Built for proven fluid handling across demanding civil, mining, and municipal duties.
Hydraulic performance encompasses a maximum shut-off head of 35 m (47 PSI) at zero flow and an open-discharge flow capacity of up to 4,200 L/min at zero static head. Kubota D1105 24.8 HP water-cooled three-cylinder diesel engine powers the unit at 3,000 RPM, producing a maximum pressure head of 35 m (47 PSI). The wear-resistant casing features an open multi-vane impeller configured for pass spherical solids up to 40 mm (1.5"). Boxed weight: 680 kg. Precision hydraulic architecture increases fluid delivery.
Plumbing includes 6" x 6" flanged ports and oil-lubricated tungsten/carbide mechanical seals. Safety controls feature an emergency stop button and automatic shutdown sensors for oil pressure and coolant temp. An integrated 60 L fuel tank provides ~10 hours runtime at 2,700 RPM. Internal self-priming passages pick up prime rapidly without requiring an external foot valve.
A front removable clean-out door enables rapid inspection and clearing of debris without disconnecting 6-inch suction lines. Corrosion-resistant hardware and unobstructed internal water passages ensure long service life. Supported by complete technical documentation and parts stockists. Removable clean-out cover allows rapid inspection and fast clearing of trapped debris.
Features- Kubota D1105 (24.8 HP) 3-cylinder water-cooled diesel engine with automatic safety shutdown.
- Large-volume 6-inch porting delivers flow rates up to 4,200 L/min.
- Cast solids handling passes spherical debris up to 40 mm (1.5").
- Oil-lubricated tungsten/carbide mechanical seals for seal protection.
- Front-mounted clean-out port for rapid clearing of blockages.
- Integrated 60 L fuel tank allows ~10 hours continuous operation at 2,700 RPM.
- Includes Aussie Pumps industrial pump warranty coverage alongside factory Kubota diesel engine warranty support.
SPECIFICATIONS
| Max Flow | 4200 L/Min |
| Max Head | 35 m |
| Power | Kubota D1105 Diesel Engine |
| Suitable For | Sewer Bypass |
| Body Material | Cast Iron |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How does the structural skid base assist crane lifting and site placement?
Formed from solid channel steel with balanced central lifting eyes, the Aussie Pumps Kubota Trash QP-60TD (QP-60TD/D1105) base allows crane hoisting, drag positioning across rough quarry ground, and stable vibration damping.
What spherical solids clearance and cleanout door access are provided on this wet end?
Passing large spherical solids up to approximately 75 mm, the QP-60TD/D1105 features an oversized front cleanout door with hand knobs for rapid clearing without disconnecting pipework.
How much dynamic pressure and fluid movement are delivered?
Total fluid displacement for the QP-60TD-D1105 tops out at approximately 4,200 L/min in volumetric throughput and reaches up to approximately 35 m in static head.
How are intake and delivery pipe connections arranged?
Plumbing on the QP 60TD D1105 is set up with 6" x 6" flanged or threaded suction and discharge connections, permitting swift field coupling.
How is engine propulsion initiated on this unit?
Fitted with a Kubota D1105 24.8HP three-cylinder diesel engine, the QP/60TD/D1105 starts swiftly via key-switch electric start.
