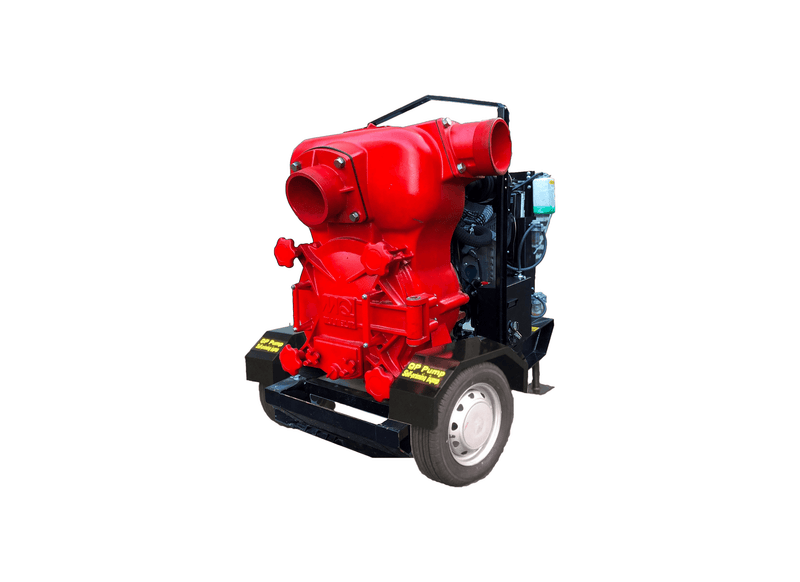

Aussie Pumps QP60TD QP-60TD/D1105T Cast Iron 24.8HP Trailer Mount Trash Pump with Kubota Diesel Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Rapid deployment for emergency response is backed by the cast highway trailer carrying this diesel trash pump. Trailer mounting allows rapid towing directly to job sites. Built for proven fluid handling across demanding civil, mining, and municipal duties.
Hydraulic performance encompasses a maximum shut-off head of 35 m (47 PSI) at zero flow and an open-discharge flow capacity of up to 4,200 L/min at zero static head. Powered by a 3-cylinder Kubota D1105 (24.8 HP) water-cooled diesel engine at 3,000 RPM, the cast pump end processes solids up to 40 mm (1.5") without binding. Precision hydraulic architecture increases fluid delivery.
Equipped with 6" x 6" ports, oil-lubricated tungsten/carbide seals, automatic engine shutdown sensors (low oil pressure/high coolant temp), emergency stop button, and a 60 L fuel tank providing ~10 hours runtime at 2,700 RPM (battery ordered separately). Self-primes to 7 m. Internal self-priming passages pick up prime rapidly without requiring an external foot valve.
Features a front clean-out cover for fast debris clearance, corrosion-resistant hardware, and unobstructed internal passages. Supported by complete factory technical assembly diagrams, user manuals, and replacement component stockists across regional distributor networks. Removable clean-out cover allows rapid inspection and debris clearance on site.
Features- Road-ready highway trailer mounting enables rapid deployment for flood mitigation.
- Kubota D1105 (24.8 HP) water-cooled diesel engine with protective auto-shutdown sensors.
- High-capacity 6-inch porting delivers up to 4,200 L/min dewatering volume.
- Handles large spherical solids up to 40 mm (1.5") in suspension.
- Oil-lubricated tungsten/carbide mechanical shaft seal delivers long operational life.
- Integrated 60 L fuel tank allows 10-hour continuous pumping shifts.
- Includes Aussie Pumps industrial pump warranty coverage alongside factory Kubota diesel engine warranty support.
SPECIFICATIONS
| Max Flow | 4200 L/Min |
| Max Head | 35 m |
| Power | Kubota D1105 Diesel Engine |
| Suitable For | Flood Response |
| Body Material | Cast Iron |
| Inlet Size | 150 mm |
| Outlet Size | 150 mm |
| Warranty | 3 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What mobility features are built into this highway-towable trailer assembly?
Mounted on a factory highway trailer with suspension, pneumatic tires, lighting, and a standard tow coupling, the Aussie Pumps Kubota Trash Trailer QP-60TD (QP-60TD/D1105T) allows rapid road dispatch directly to emergency flood sites.
How does the front cleanout door assist fast debris clearing on site?
The QP-60TD/D1105T handles large suspended debris up to approximately 75 mm in diameter, featuring a tool-free front cleanout cover to clear rocks and mud clogs in minutes.
What mechanical drive and starting system are incorporated?
Propulsion for the QP-60TD-D1105T is generated by a Kubota D1105 24.8HP three-cylinder diesel engine, equipped with electric key start.
What peak water displacement and dynamic head apply across sites?
Delivering strong hydraulic performance, the QP 60TD D1105T is rated for a maximum flow of approximately 4,200 L/min and a maximum head of approximately 35 m.
What suction lift capacity is developed during dry line drafting?
The QP/60TD/D1105T self-primes from vertical intake depths reaching up to approximately 7.6 m, maintaining dependable suction performance.
