SKU: QPT405SLT/GX390EL

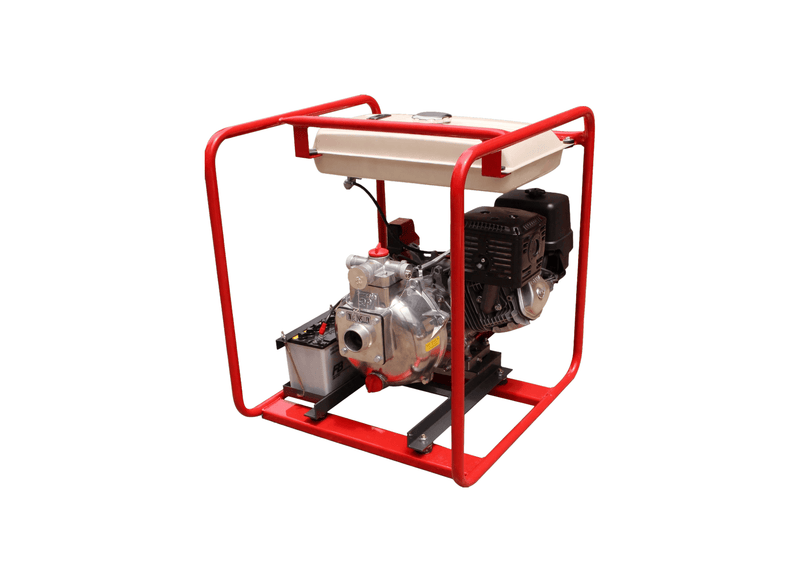

Aussie Pumps QPT405SLT/GX390EL Aluminium 13HP Twin Impeller Firefighting Pump with Honda GX390EL Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Agricultural irrigation trusts and civil infrastructure contractors run the Aussie Mr T (QPT405SLT/GX390EL) high capacity twin impeller pump for broadacre mainline water boosting and rapid filling of bulk road tankers. Large suction geometry feeds twin impellers that produce high head pressure at strong flow volumes. A safety battery lock-out switch stops unauthorized tampering on unattended public worksites.
High elevation delivery volume achieves a maximum delivery rate of 795 L/min and develops a maximum elevation head of 115 m. Internal hydraulic architecture features a marine grade aluminium casing, twin closed aluminium impellers mounted on a single drive shaft, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 144 kg in dry operating trim.
Mechanical drive is provided by a Honda GX390 13HP electric start petrol engine with 16L long range fuel tank (battery supplied separately) producing 13 HP. Plumbing connections incorporate 4" BSP male inlet & 3-way outlet (2 x 3", 1 x 4") with full metal caps, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Integrated 16L fuel cell supports extended runtimes, while anti-vibration mounting isolates vibration and simplifies site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 4-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Twin closed aluminium impellers push discharge heads up to 115 m.
- A 4-inch 3-way discharge with 1 x 4-inch and 2 x 3-inch ports, caps and chains suits fire hose lines.
- The serviceable suction valve holds prime in the casing between jobs.
- Backed by a 5-year pump end warranty from Aussie Pumps with 3-year Honda GX engine cover.
SPECIFICATIONS
| Max Flow | 795 L/Min |
| Max Head | 115 m |
| Power | Honda GX390EL Petrol Electric Start Engine |
| Suitable For | Irrigation |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 100 mm |
| Outlet Size | 3-way (1 x 100 mm, 2 x 80 mm) |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are equipment warranty and Australian service support handled?
Coverage for the Aussie Pumps QPT405SLT GX390EL (QPT405SLT/GX390EL) includes a 5-year pump end warranty, 3-year Honda GX engine warranty, supported by certified service facilities and parts availability throughout Australia.
Which intake threading and discharge connections are provided?
The QPT405SLT/GX390EL is plumbed with 100 mm BSP male suction threading and 3-way (1 x 100 mm, 2 x 80 mm) BSP discharge ports, allowing fast hookup on site.
What suction lift performance and priming depth are achievable?
With vertical suction lift reaching up to 7.6 m, the QPT405SLT-GX390EL draws water directly from dams and pits once the pump casing is charged.
What peak volumetric water displacement and head capacity apply?
The QPT405SLT GX390EL achieves a maximum flow capacity of 795 L/min and a maximum head limit of 115 m, varying across operating requirements.
Which mechanical engine drive and ignition arrangement are fitted?
The Aussie QPT405SLT/GX390EL operates on a Honda GX390 13HP electric start petrol engine with 16L long range fuel tank, utilizing an electric key start ignition to drive the hydraulic pump assembly.
