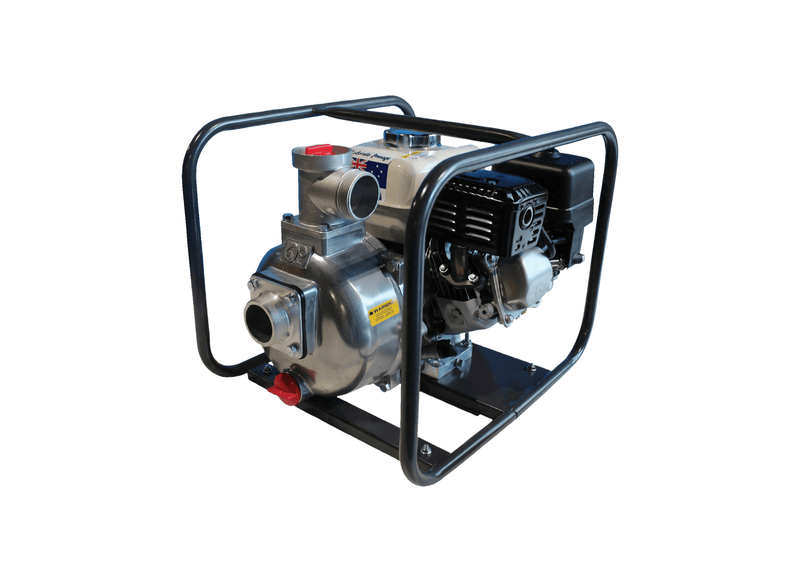

Aussie Pumps Quik Prime QP-2/GX120 Aluminium 4HP Gusher Pump with Honda GX120 Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Hobby farmers, garden nursery caretakers, and rural property owners operate the Aussie Quik Prime (QP-2/GX120) compact transfer pump for transferring water between storage tanks, draining flooded paddocks, and irrigating vegetable plots. The compact aluminium self-priming body lifts easily in and out of utility vehicles for versatile daily jobs. Fast self-priming hydraulics draw water swiftly from creeks, dams, and rainwater tanks.
Bulk fluid delivery achieves a maximum delivery rate of 600 L/min and develops a maximum pressure of 43 psi. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 24 kg in dry operating trim.
Mechanical drive is provided by a Honda GX120 4HP recoil start 4-stroke petrol engine producing 4HP (2.9kW) Petrol. Plumbing connections incorporate 2" BSP male inlet & 2" BSP male outlet, and the self-priming wet end achieves 7.2 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Steel roll frame with anti-vibration mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High tensile marine grade aluminium casing resists corrosion through continuous water service.
- Big belly priming chamber picks up prime fast from 7.2 m.
- An open vane cast iron impeller moves 600 L/min with low petrol fuel usage.
- Large diameter 2-inch suction and discharge ports maximize bulk transfer rates.
- The serviceable suction valve holds prime in the casing between jobs.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Aussie Pumps covers the pump end for 5 years with 3-year Honda GX engine warranty support.
SPECIFICATIONS
| Max Flow | 600 L/Min |
| Max Head | 30 m |
| Power | Honda GX120 Petrol Engine |
| Suitable For | Tanker Fill |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What volumetric flow capacity and vertical elevation apply to this unit?
The Aussie Pumps Quik Prime QP-2 (QP-2/GX120) delivers a maximum flow rate of 600 L/min and develops a maximum head of 30 m, depending on site operating conditions.
What engine drive and starting mechanism power this assembly?
Mechanical power for the QP-2/GX120 is supplied by a Honda GX120 4HP recoil start 4-stroke petrol engine, started via a manual recoil pull starter.
What plumbing connections and discharge port arrangements are fitted?
Plumbing connections for the QP-2-GX120 incorporate 50 mm BSP male intake and 50 mm BSP fittings, matching standard suction and delivery lines.
How quickly does the pump establish prime from low water sources?
The QP-2 GX120 provides self-priming capability from up to 7.2 m vertical suction lift, picking up prime swiftly without requiring external line priming.
What factory warranty protection and service support are provided?
Backed by a 5-year pump end warranty, 3-year Honda GX engine warranty, the Aussie QP-2/GX120 is supported by authorized service agents and genuine spare parts across Australia.
