SKU: QP203T/GX200

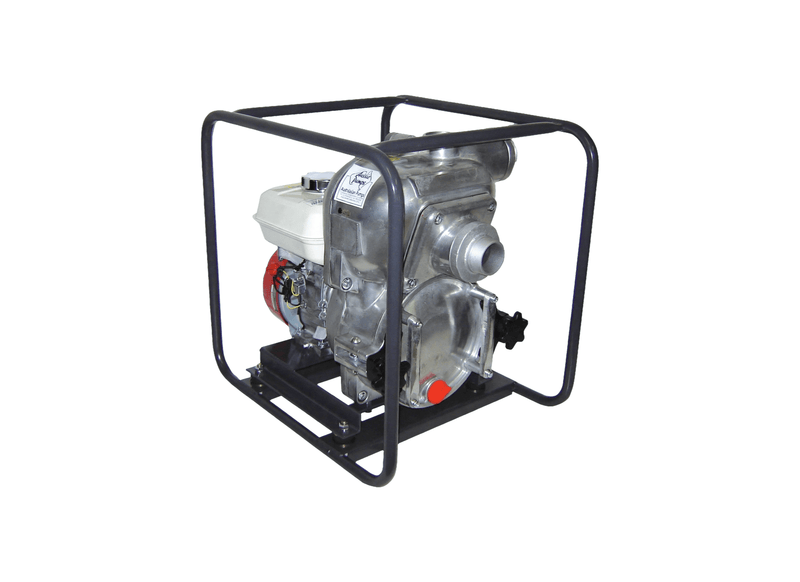

Aussie Pumps Quik Prime QP203T/GX200 Aluminium 6.5HP Trash Pump with Honda GX200 Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Foundation contractors and road maintenance crews deploy the Aussie Quik Prime (QP203T/GX200) high power trash pump for clearing slurry-laden foundation shafts and flooded roadway excavations. Extra engine power keeps the pump spinning at full speed when handling suspended solids. Silicon carbide mechanical seal faces resist premature erosion from sharp abrasive silt particles.
Civil dewatering capacity achieves a maximum delivery rate of 630 L/min and develops a maximum elevation head of 27 m. Total equipment mass is 56 kg in standard operating trim. Internal casing clearances allow spherical solids up to 20 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers.
Mechanical drive is provided by a Honda GX200 6.5HP recoil start petrol engine producing 6.5 HP. Plumbing connections incorporate 2" BSP male inlet & 2" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.3 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel carry frame with anti-vibration mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength casing structure stands up to abrasive slurry season after season through 2-inch porting.
- Big belly priming chamber picks up prime fast from 7.3 m.
- Tough ductile iron casting passes suspended debris up to 20 mm diameter without clogging.
- Inspect the pump impeller chamber in seconds through the quick-release front port.
- Abrasion-resistant silicon carbide seal faces stop liquid leakage in muddy slurry.
- A fully welded carry frame protects the 2-inch on rough sites.
- Backed by a 5-year pump end warranty from Aussie Pumps with 3-year Honda GX engine cover.
SPECIFICATIONS
| Max Flow | 630 L/Min |
| Max Head | 27 m |
| Power | Honda GX200 Petrol Engine |
| Suitable For | Construction Dewatering |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What flow throughput and total head elevation does this unit produce?
The Aussie Pumps Quik Prime Trash Pumps QP203T GX200 (QP203T/GX200) delivers a maximum flow rate of 630 L/min and develops a maximum head of 27 m, depending on site operating conditions.
What drive engine and starter mechanism provide mechanical power?
Mechanical power for the QP203T/GX200 is supplied by a Honda GX200 6.5HP recoil start petrol engine, started via a manual recoil pull starter.
What port threading and discharge manifold fittings are supplied?
Plumbing connections for the QP203T-GX200 incorporate 50 mm BSP male intake and 50 mm BSP fittings, matching standard suction and delivery lines.
How are suspended solids and muddy slurry handled during excavation dewatering?
Capable of passing up to 20 mm spherical solids, the QP203T GX200 includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
How is warranty coverage structured for the pump end and engine?
Backed by a 5-year pump end warranty, 3-year Honda GX engine warranty, the Aussie QP203T/GX200 is supported by authorized service agents and genuine spare parts across Australia.
