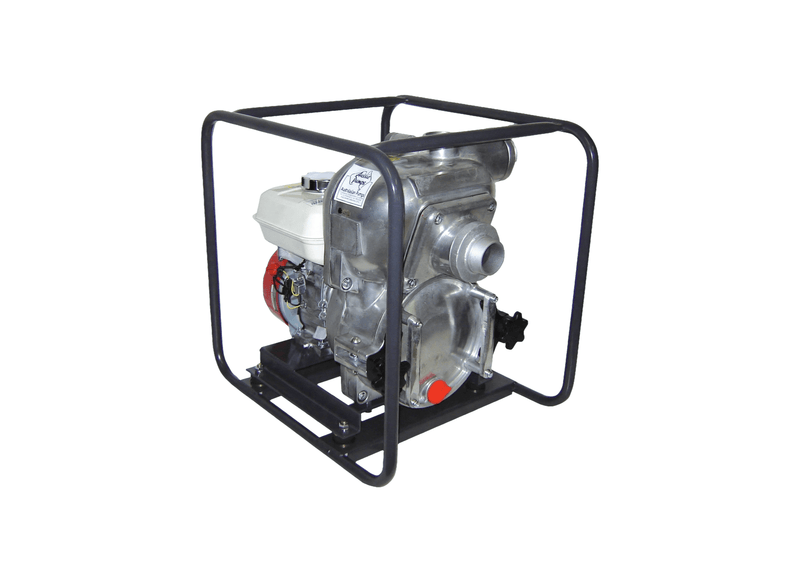

Aussie Pumps Quik Prime QP203T/GX200E Aluminium 6.5HP Trash Pump with Honda GX200E Petrol Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Commercial earthmovers and civil trenching crews run the Aussie Quik Prime (QP203T/GX200E) electric start trash pump for fast dewatering of muddy utility excavations on active construction sites. Key start electric ignition avoids manual rope pulls in wet, muddy work conditions. The ductile iron impeller and replaceable wear plate hold high hydraulic performance over long shifts.
Civil dewatering capacity achieves a maximum delivery rate of 630 L/min and develops a maximum elevation head of 27 m. Internal casing clearances allow spherical solids up to 20 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 58 kg in standard operating trim.
Mechanical drive is provided by a Honda GX200 6.5HP electric start petrol engine (battery supplied separately) producing 6.5 HP. Plumbing connections incorporate 2" BSP male inlet & 2" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.3 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel carry frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength cast alloy casing lets this 2-inch stand up to abrasive slurry pumping.
- Big belly priming chamber picks up prime fast from 7.3 m.
- Tough ductile iron casting passes suspended debris up to 20 mm diameter without clogging.
- Inspect the pump impeller chamber in seconds through the quick-release front port.
- Abrasion-resistant silicon carbide seal faces stop liquid leakage in muddy slurry.
- A fully welded carry frame protects the 2-inch on rough sites.
- Backed by a 5-year pump end warranty from Aussie Pumps with 3-year Honda GX engine cover.
SPECIFICATIONS
| Max Flow | 630 L/Min |
| Max Head | 27 m |
| Power | Honda GX200 Petrol Electric Start Engine |
| Suitable For | Waste Water Handling |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor drive and ignition setup power this water pump?
Driven by a genuine Honda GX200 6.5HP electric start petrol engine, the Aussie Pumps Quik Prime Trash Pumps QP203T GX200E (QP203T/GX200E) utilizes an electric key start ignition for reliable operation in the field.
What debris passage diameter and cleanout access are provided?
Capable of passing up to 20 mm spherical solids, the QP203T/GX200E includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
What maximum pumping volume and static head does this equipment develop?
Rated for a maximum flow of 630 L/min and a maximum head of 27 m, the QP203T-GX200E adjusts volumetric output across its performance curve.
What factory warranty backing and technical support are included?
Equipment reliability for the QP203T GX200E is backed by a 5-year pump end warranty, 3-year Honda GX engine warranty, offering nationwide service agent and spare parts support.
Which pipe thread sizes and outlet options are featured?
Fitted with a 50 mm BSP suction port and 50 mm BSP discharge arrangement, the Aussie QP203T/GX200E connects straightforwardly to field hoses.
