SKU: QP209/GX160

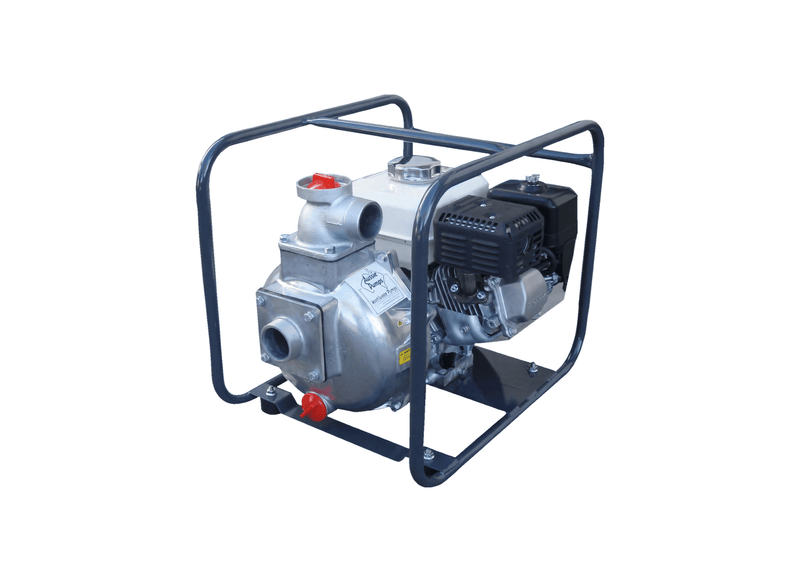

Aussie Pumps Quik Prime QP209/GX160 Aluminium 5.5HP Gusher Pump with Honda GX160 Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Pastoralists, market gardeners, and civil site workers deploy the Aussie Quik Prime (QP209/GX160) gusher pump for high volume dam dewatering, channel irrigation, and rapid tank filling. An open cast iron transfer impeller moves large fluid volumes without bogging down in silty water. The marine grade aluminium casing combines structural strength with lightweight portability.
Bulk fluid delivery achieves a maximum delivery rate of 800 L/min and develops a maximum pressure of 47 psi. Internal hydraulic architecture features a marine grade aluminium casing, an open vane cast iron transfer impeller, and a carbon ceramic mechanical seal with nitrile elastomers. Total equipment mass measures 30 kg in dry operating trim.
Mechanical drive is provided by a Honda GX160 5.5HP recoil start petrol engine producing 5.5HP (4.1kW) Petrol. Plumbing connections incorporate 2" BSP male inlet & 2" BSP male outlet, and the self-priming wet end achieves 7.6 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Full roll frame with anti-vibration mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- The 2-inch alloy body shrugs off corrosion across seasons of farm use.
- A large internal liquid reservoir delivers fast self-priming from 7.6 m depth.
- Big open vanes shift high fluid volumes economically through 2-inch porting.
- Large diameter suction and discharge ports maximize bulk transfer rates through 2-inch porting.
- A replaceable suction check valve retains liquid in the pump casing to avoid re-priming.
- Site-proof roll frame guards the pump engine and pump on rough ground.
- Backed by a 5-year pump end warranty from Aussie Pumps with 3-year Honda GX engine cover.
SPECIFICATIONS
| Max Flow | 800 L/Min |
| Max Head | 33 m |
| Power | Honda GX160 Petrol Engine |
| Suitable For | Tanker Fill |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 50 mm |
| Outlet Size | 50 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
Which motor configuration and ignition system drive the pump?
Driven by a genuine Honda GX160 5.5HP recoil start petrol engine, the Aussie Pumps Quik Prime QP209 Gusher (QP209/GX160) utilizes a manual recoil pull starter for reliable operation in the field.
What suction lift performance and priming depth are achievable?
With vertical suction lift reaching up to 7.6 m, the QP209/GX160 draws water directly from dams and pits once the pump casing is charged.
What maximum water delivery and discharge head are developed?
Rated for a maximum flow of 800 L/min and a maximum head of 33 m, the QP209-GX160 adjusts volumetric output across its performance curve.
How is this unit covered under manufacturer warranty terms?
Equipment reliability for the QP209 GX160 is backed by a 5-year pump end warranty, 3-year Honda GX engine warranty, offering nationwide service agent and spare parts support.
How are the inlet and outlet ports configured on this pump?
Fitted with a 50 mm BSP suction port and 50 mm BSP discharge arrangement, the Aussie QP209/GX160 connects straightforwardly to field hoses.
