SKU: QP300T/GX160

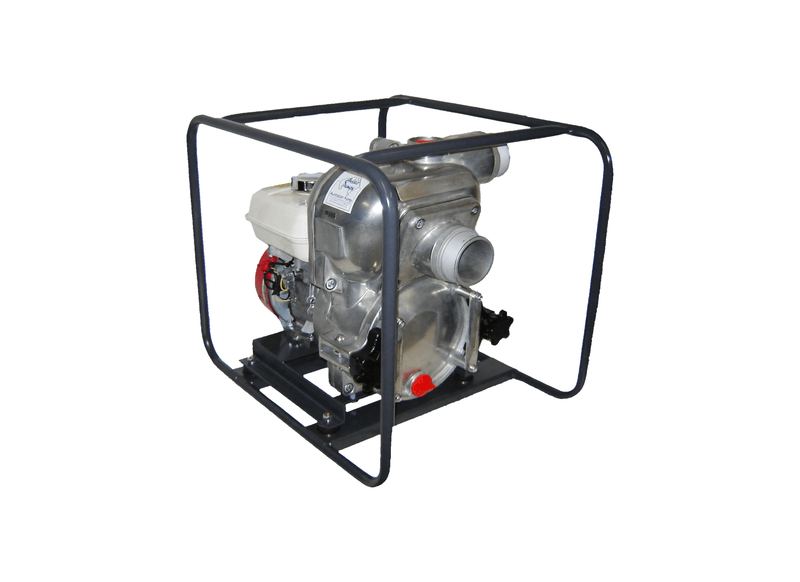

Aussie Pumps Quik Prime QP300T/GX160 Aluminium 5.5HP Trash Pump with Honda GX160 Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Civil drainage workers and municipal council crews operate the Aussie Quik Prime (QP300T/GX160) petrol trash pump with three-inch ports for clearing stormwater drains, culverts, and muddy construction swales containing rocks and silt. Three-inch port connections accommodate heavy slurry flows while passing solid debris without blocking. Hand-removable cleanout knobs make chamber clearing fast and simple on active work sites.
Civil dewatering capacity achieves a maximum delivery rate of 850 L/min and develops a maximum pressure of 38 psi. Internal casing clearances allow spherical solids up to 20 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 58 kg in standard operating trim.
Mechanical drive is provided by a Honda GX160 5.5HP recoil start petrol engine producing 5.5HP (4.1kW) Petrol. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.4 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Heavy duty carry frame with anti-vibration mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- Abrasive slurry meets its match in this high strength cast alloy 3-inch casing.
- A large internal liquid reservoir delivers fast self-priming from 7.4 m depth.
- Abrasion-proof ductile iron impeller clears 20 mm solids without binding.
- A quick-release front port allows rapid impeller chamber inspection without disconnecting lines.
- Silicon carbide seal faces keep muddy slurry from leaking at the shaft.
- Robust carry frame keeps the engine and pump safe around the site.
- Aussie Pumps covers the pump end for 5 years with 3-year Honda GX engine warranty support.
SPECIFICATIONS
| Max Flow | 850 L/Min |
| Max Head | 27 m |
| Power | Honda GX160 Petrol Engine |
| Suitable For | Effluent Pump Out |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are the intake and discharge pipe connections laid out?
The Aussie Pumps Quik Prime QP300T (QP300T/GX160) features 80 mm BSP intake threading and 80 mm BSP delivery ports for flexible pipe and hose connections.
What volumetric fluid output and vertical dynamic head apply?
The QP300T/GX160 provides up to 850 L/min in water flow and up to 27 m in elevation head, with actual delivery determined by the operating point.
Which warranty terms and service agent networks support this unit?
The QP300T-GX160 is covered by a 5-year pump end warranty, 3-year Honda GX engine warranty, with complete spare parts access and factory documentation available Australia-wide.
How is this unit driven and what starting mechanics are provided?
The QP300T GX160 features a Honda GX160 5.5HP recoil start petrol engine, incorporating a manual recoil pull starter to get pumping quickly.
How does this trash pump manage solid particles and chamber cleaning?
Capable of passing up to 20 mm spherical solids, the Aussie QP300T/GX160 includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
