SKU: QP300T/GX200E

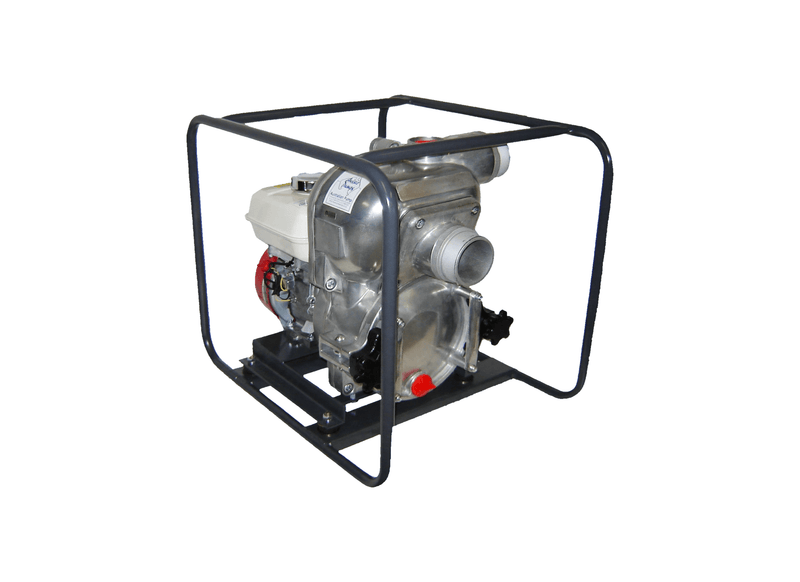

Aussie Pumps Quik Prime QP300T/GX200E Aluminium 6.5HP Trash Pump with Honda GX200E Petrol Electric Start Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Bridge building contractors and pipeline crews deploy the Aussie Quik Prime (QP300T/GX200E) electric start trash pump with three-inch ports for continuous dewatering of foundation excavations and riverbed pier footings. Electric key start provides effortless activation during early morning jobsite startups. Abrasion-resistant silicon carbide seals stop fluid leaks when pumping dirty slurry.
Civil dewatering capacity achieves a maximum delivery rate of 850 L/min and develops a maximum elevation head of 27 m. Internal casing clearances allow spherical solids up to 20 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 58 kg in standard operating trim.
Mechanical drive is provided by a Honda GX200 6.5HP electric start petrol engine (battery supplied separately) producing 6.5 HP. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.4 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Structural fully welded steel carry frame with battery mounting tray encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- High strength casing structure stands up to abrasive slurry season after season through 3-inch porting.
- A large internal liquid reservoir delivers fast self-priming from 7.4 m depth.
- Abrasion-proof ductile iron impeller clears 20 mm solids without binding.
- A quick-release front port allows rapid impeller chamber inspection without disconnecting lines.
- Silicon carbide seal faces keep muddy slurry from leaking at the shaft.
- Robust carry frame keeps the engine and pump safe around the site.
- Aussie Pumps covers the pump end for 5 years with 3-year Honda GX engine warranty support.
SPECIFICATIONS
| Max Flow | 850 L/Min |
| Max Head | 27 m |
| Power | Honda GX200 Petrol Electric Start Engine |
| Suitable For | Livestock Waste Disposal |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
What spherical particle size can this casing clear without binding?
Capable of passing up to 20 mm spherical solids, the Aussie Pumps Quik Prime Trash Pumps QP300T GX200E (QP300T/GX200E) includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
What manufacturer warranty periods protect this pump and motor?
Protection for the QP300T/GX200E includes a 5-year pump end warranty, 3-year Honda GX engine warranty, providing verified Australian warranty backing and technical support.
What engine powerhead and starter arrangement drive this unit?
Power for the QP300T-GX200E comes from a Honda GX200 6.5HP electric start petrol engine, equipped with an electric key start ignition for straightforward field deployment.
What inlet size and discharge port options come equipped on this unit?
Suction intake on the QP300T GX200E is provided via 80 mm BSP threading, with delivery directed through 80 mm BSP fittings.
What delivery volume and vertical lift limits are specified?
Hydraulic output for the Aussie QP300T/GX200E reaches up to 850 L/min in volumetric flow and up to 27 m in total head, depending on system duty.
