SKU: QP301T/GX240

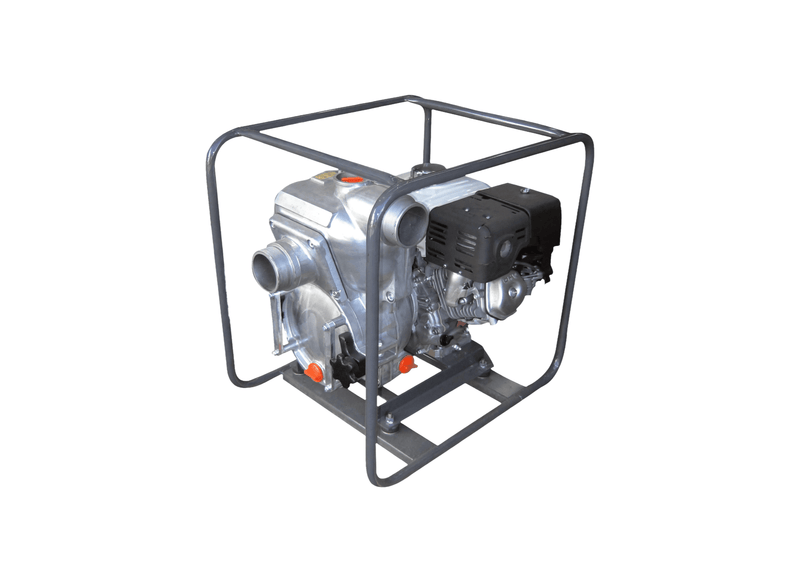

Aussie Pumps Quik Prime QP301T/GX240 Aluminium 8HP Trash Pump with Honda GX240 Petrol Engine
Australia-Wide
(08) 9240 2992
Official Aussie Pumps
Peace of Mind
Product Overview
Heavy civil engineering contractors and quarry drainage crews run the Aussie Quik Prime (QP301T/GX240) high flow trash pump for managing heavy inflows of muddy groundwater mixed with stones and construction rubble. The ductile iron open impeller swallows spherical solids without slowing fluid delivery. A fully welded carry frame guards pump and engine components from site damage.
Civil dewatering capacity achieves a maximum delivery rate of 1,200 L/min and develops a maximum pressure of 38 psi. Internal casing clearances allow spherical solids up to 25 mm to travel directly through the pump body without clogging. The hydraulic assembly combines a cast casing, ductile iron open impeller, and silicon carbide mechanical seal faces with nitrile elastomers. Total equipment mass is 70 kg in standard operating trim.
Mechanical drive is provided by a Honda GX240 8HP recoil start petrol engine producing 8HP (5.9kW) Petrol. Plumbing connections incorporate 3" BSP male inlet & 3" BSP male outlet with front clean out port, and the self-priming wet end achieves 7.5 m vertical suction lift. Rapid self-priming internal dynamics pick up fluid swiftly without requiring manual foot valves on suction lines.
Heavy duty carry frame with anti-vibration mounts encloses the equipment while isolating mechanical vibration and simplifying site movement. The structural mount provides balance during transport across field vehicles, trailers, and utility trays. Complete spare parts support and factory technical documentation are accessible through Aussie Pumps distribution networks across Australia.
Features
- Abrasive slurry meets its match in this high strength cast alloy 3-inch casing.
- A large internal liquid reservoir delivers fast self-priming from 7.5 m depth.
- Abrasion-proof ductile iron impeller clears 25 mm solids without binding.
- A quick-release front port allows rapid impeller chamber inspection without disconnecting lines.
- Silicon carbide seal faces keep muddy slurry from leaking at the shaft.
- Robust carry frame keeps the engine and pump safe around the site.
- Aussie Pumps covers the pump end for 5 years with 3-year Honda GX engine warranty support.
SPECIFICATIONS
| Max Flow | 1200 L/Min |
| Max Head | 27 m |
| Power | Honda GX240 Petrol Engine |
| Suitable For | Livestock Waste Disposal |
| Body Material | Marine Grade Aluminium |
| Inlet Size | 80 mm |
| Outlet Size | 80 mm |
| Warranty | 5 Years |
Warranty & Returns
All products supplied by Foundation Pumps are covered by a minimum 12-month warranty unless otherwise stated. Some brands may offer longer manufacturer warranties. Warranty covers manufacturing defects, faulty materials and workmanship under normal use.
- Products must be installed correctly and in accordance with the manufacturer’s instructions.
- Warranty does not cover incorrect installation, misuse, dry running, normal wear and tear, unauthorised repairs or damage caused by external factors.
- Proof of purchase, photos, videos and installation details may be requested when assessing a warranty claim.
- The customer is responsible for returning the product to Foundation Pumps or the nominated service centre unless otherwise agreed.
- Removal, reinstallation, labour and associated site costs are generally the customer’s responsibility unless required under Australian Consumer Law.
- Change-of-mind returns may be accepted within 30 days provided the product is unused, uninstalled and returned in its original packaging.
- Customers are responsible for return freight costs for change-of-mind returns.
- Restocking fees may apply to special-order, bulky or non-stocked products.
- Used, installed or specially ordered products may not be eligible for change-of-mind returns.
- If a product arrives damaged or faulty, please contact Foundation Pumps as soon as possible so we can assist with the appropriate repair, replacement or refund.
Your rights under Australian Consumer Law are not affected.
How are equipment warranty and Australian service support handled?
Coverage for the Aussie Pumps Quik Prime QP301T (QP301T/GX240) includes a 5-year pump end warranty, 3-year Honda GX engine warranty, supported by certified service facilities and parts availability throughout Australia.
Which intake threading and discharge connections are provided?
The QP301T/GX240 is plumbed with 80 mm BSP male suction threading and 80 mm BSP discharge ports, allowing fast hookup on site.
How are muddy slurry blockages inspected and cleared from the casing?
Capable of passing up to 25 mm spherical solids, the QP301T-GX240 includes a front cleanout inspection door that allows rapid chamber clearing without uncoupling suction lines.
What peak volumetric water displacement and head capacity apply?
The QP301T GX240 achieves a maximum flow capacity of 1,200 L/min and a maximum head limit of 27 m, varying across operating requirements.
Which mechanical engine drive and ignition arrangement are fitted?
The Aussie QP301T/GX240 operates on a Honda GX240 8HP recoil start petrol engine, utilizing a manual recoil pull starter to drive the hydraulic pump assembly.
